Description

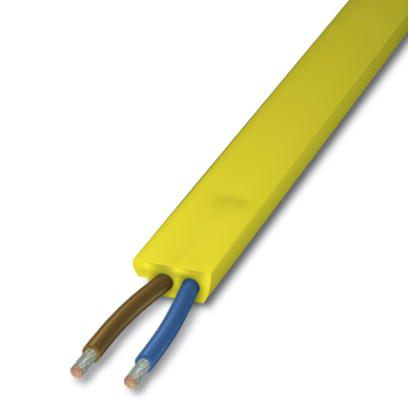

AS-Interface PUR flat-ribbon conductor in yellow, 2 x 1.5 mm², 1000 m on a disposable drumFlat-ribbon conductor 1404841
Phoenix Contact 1404841 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (assembly)
- -30 °C - 85 °C
- Ambient temperature (operation)
- -30 °C - 85 °C (Flexibly installed)
- -40 °C - 85 °C (fixed routing)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
Electrical characteristics
- Rated surge voltage
- 2 kV
- Rated voltage (III/3)
- 300 V
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Line characteristics
- Acceleration
- 4 m/s²
- Ambient temperature (operation)
- -40 °C - 85 °C (cable, fixed installation)
- -30 °C - 85 °C (cable, flexible installation)
- AWG signal line
- 16
- Bending radius
- 50 mm
- 75 mm
- Cable structure
- 2x 1.5 mm²
- Cable weight
- 64 kg/km
- Conductor cross section
- 1.5 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- ≤ 13.7 Ω/km
- Conductor structure signal line
- 84x 0.15 mm
- Core diameter including insulation
- 2.5 mm
- External sheath, color
- lemon yellow RAL 1012
- Halogen-free
- yes
- Insulation resistance
- ≥ 1 MΩ*km
- Material conductor insulation
- PP
- Max. bending cycles
- 8000000
- 10000000
- Nominal voltage, cable
- 300 V
- Outer sheath, material
- PUR
- Smallest bending radius, fixed installation
- ≥ 6 mm (one-time)
- Special properties
- Silicone-free
- Test voltage, cable
- 2000 V
- Thickness, insulation
- approx. 0.5 mm
- Traversing direction
- horizontal, above the broadside
- vertical, above the broadside
- Traversing rate
- 4 m/s
- Type of cable
- Flat-ribbon conductor
- Wire colors
- brown, blue
Material data
- External sheath, color
- yellow
- Height
- 4 mm
- Outer sheath, material
- PUR
Mechanical characteristics
- Cable structure
- 2x 1.5 mm²
- Duty cycle testing
- suitable for drag chain
- Length of cable
- 1000 m
- Number of positions
- 2
- Shielded
- no
- Type of cable
- Flat-ribbon conductor
Standards and Regulations
- Duty cycle testing
- suitable for drag chain
