Phoenix Contact 1404361
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

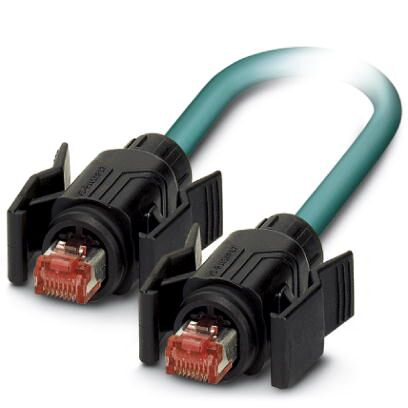

Assembled Ethernet cable, CAT6, shielded, 4-pair, 26 AWG* stranded (7-wire), RAL 5021 (water blue), RJ45 plug/IP67 (black) to RJ45 plug/IP67 (black), line, length: 3 mNetwork cable - VS-IP67B-IP67B-94F/3,0 - 1404361
Phoenix Contact 1404361 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -10 °C - 50 °C (cable, flexible installation)
- -25 °C - 60 °C (cable, fixed installation)
- Degree of protection
- IP67
Cable
- Ambient temperature (installation)
- -20 °C - 80 °C
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -20 °C - 80 °C (cable, flexible installation)
- Ambient temperature (storage/transport)
- -20 °C - 80 °C
- Attenuation
- 28.7 dB (at 100 MHz)
- 67.9 dB (at 500 MHz)
- 14.1 dB (at 25 MHz)
- 41.4 dB (at 200 MHz)
- 3.1 dB (with 1 MHz)
- 8 dB (at 8 МHz)
- 22.5 dB (at 62.5 МHz)
- 12.6 dB (at 20 МHz)
- 15.8 dB (at 31.25 МHz)
- 60.1 dB (at 400 MHz)
- 11.2 dB (at 16 MHz)
- 5.7 dB (at 4 МHz)
- 8.9 dB (at 10 MHz)
- 46.6 dB (at 250 MHz)
- 51.4 dB (at 300 MHz)
- AWG signal line
- 26
- Cable capacity
- 47 nF/km
- Cable structure
- 4x2xAWG26/7; S/FTP
- Cable type
- Ethernet 10 Gbit
- Cable type (abbreviation)
- 94F
- Cable weight
- 42 kg/km
- Conductor cross section
- 4x 2x 0.14 mm²
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 7x 0.16 mm
- Core diameter including insulation
- 1.04 mm
- External cable diameter D
- 6.4 mm ±0.2 mm
- External sheath, color
- water blue RAL 5021
- Flame resistance
- according to IEC 60332-1-2
- Halogen-free
- according to IEC 60754-1
- Insulation resistance
- ≥ 500 MΩ*km
- Loop resistance
- ≤ 290.00 Ω/km
- Material conductor insulation
- Foamed PE
- Minimum bending radius, fixed installation
- 4 x D
- Minimum bending radius, flexible installation
- 8 x D
- Near end crosstalk attenuation (NEXT)
- 38.1 dB (at 300 MHz)
- 66.3 dB (at 4 МHz)
- 36.3 dB (at 400 MHz)
- 34.8 dB (at 500 MHz)
- 60.3 dB (at 10 MHz)
- 45.3 dB (at 100 MHz)
- 40.8 dB (at 200 MHz)
- 75.3 dB (with 1 MHz)
- 57.2 dB (at 16 MHz)
- 48.4 dB (at 62.5 МHz)
- 39.3 dB (at 250 MHz)
- 55.8 dB (at 20 МHz)
- 54.3 dB (at 25 MHz)
- 52.8 dB (at 31.25 МHz)
- 61.8 dB (at 8 МHz)
- Nominal voltage, cable
- ≤ 100 V
- Optical shield covering
- 70 %
- Outer sheath, material
- PUR
- Outer sheath thickness
- 0.65 mm
- Overall twist
- 4 pairs for core
- Power-summated near end crosstalk attenuation (PSNEXT)
- 72.3 dB (with 1 MHz)
- 63.3 dB (at 4 МHz)
- 57.3 dB (at 10 MHz)
- 35.1 dB (at 300 MHz)
- 42.3 dB (at 100 MHz)
- 54.2 dB (at 16 MHz)
- 58.8 dB (at 8 МHz)
- 49.9 dB (at 31.25 МHz)
- 45.4 dB (at 62.5 МHz)
- 36.3 dB (at 250 MHz)
- 52.8 dB (at 20 МHz)
- 37.8 dB (at 200 MHz)
- 33.3 dB (at 400 MHz)
- 51.3 dB (at 25 MHz)
- 31.8 dB (at 500 MHz)
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Return loss (RL)
- 24.5 dB (at 8 МHz)
- 23.3 dB (at 31.25 МHz)
- 19 dB (at 100 MHz)
- 16.4 dB (at 200 MHz)
- 15.6 dB (at 300 MHz)
- 24.2 dB (at 25 MHz)
- 15.6 dB (at 250 MHz)
- 23 dB (at 4 МHz)
- 25 dB (at 16 MHz)
- 15.6 dB (at 400 MHz)
- 15.6 dB (at 500 MHz)
- 25 dB (at 20 МHz)
- 25 dB (at 10 MHz)
- 20 dB (with 1 MHz)
- 20.7 dB (at 62.5 МHz)
- Shield attenuation
- ≥ 80 dB (at 30 - 100 MHz)
- Shielding
- Tinned copper braided shield
- Signal runtime
- 5.13 ns/m
- Signal type/category
- Ethernet CAT6A, 10 Gbps
- Tensile strength GRP
- ≤ 100 N
- Test voltage Core/Core
- 700 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 700 V (50 Hz, 1 min.)
- Twisted pairs
- 2 cores to the pair
- Type of pair shielding
- Aluminum-lined foil
- UL AWM style
- 20963 (80°C/30 V)
- Wave impedance
- 100 Ω ±5 Ω (at 100 MHz)
- Wire colors
- white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Characteristics head 1
- External sheath, color
- water blue RAL 5021
- Outer sheath, material
- PUR
- Shielded
- yes
Dimensions
- Length of cable
- 3.00 m
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
General data
- Alternative short product description
- Ethernet cable
- Degree of pollution
- 2
- Degree of protection
- IP67
- Number of positions
- 8
- Number of slots
- 1
Standards and Regulations
- Flammability rating according to UL 94
- V2
