Description

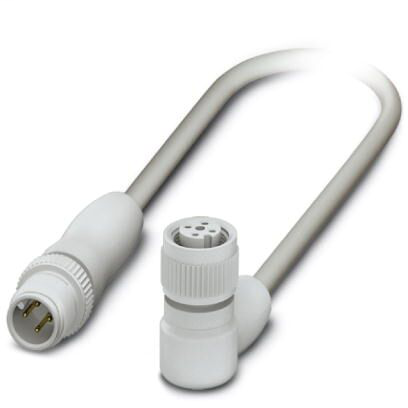

Sensor/actuator cable, 4-position, PP-EPDM halogen-free, gray RAL 7035, Plug straight M12, coding: A, on Socket angled M12, coding: A, cable length: 0.6 m, Hygienic design, with plastic knurlSensor/actuator cable - SAC-4P-M12MS/0,6-600/M12FR FB - 1404028
Phoenix Contact 1404028 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 105 °C (Plug / socket)
- Degree of protection
- IP68
- IP65
- IP69K
- IP67
Cable
- Acceleration
- 10 m/s²
- Ambient temperature (operation)
- -25 °C - 105 °C (cable, flexible installation)
- -40 °C - 105 °C (cable, fixed installation)
- AWG signal line
- 22
- Cable abbreviation
- Li9Y9Y
- Cable type
- Halogen-free PP gray
- Cable type (abbreviation)
- 600
- Cable weight
- 30 kg/km
- Conductor cross section
- 4x 0.34 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- 58 Ω/km (at 20 °C)
- Conductor structure signal line
- 42x 0.10 mm
- Core diameter including insulation
- 1.27 mm ±0.02 mm (Signal line)
- External cable diameter D
- 4.7 mm ±0.15 mm
- External sheath, color
- gray RAL 7035
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- Length of twist, overall twist
- 48 mm
- Material conductor insulation
- PP
- Minimum bending radius, drag chain applications
- 10 x D
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 300 V AC
- Number of bending cycles
- 4000000
- Other resistance
- Resistant to cold bending and cold impacts According to DIN EN 60811-1-4 (-40 °C)
- Outer sheath, material
- PP-EPDM
- Outer sheath thickness
- approx. 0.8 mm
- Overall twist
- 4 wires, twisted
- Special properties
- FDA compliant according to FDA 21 CFR 177.2600
- highly flexible
- Flexible cable conduit capable
- Test voltage, cable
- ≥ 3000 V AC (Spark test)
- Thickness, insulation
- ≥ 0.21 mm (Core insulation)
- Torsion force
- ± 270 °/m (4,000,000 torsion cycles, max. 25 torsion cycles/min)
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- Wire colors
- brown, white, blue, black
Dimensions
- Length of cable
- 0.6 m
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Material
- Contact carrier material
- PP
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Material, knurls
- Polypropylene
- Material of grip body
- PP
- Sealing material
- FKM
Standards and Regulations
- Standards/specifications
- M12 connector IEC 61076-2-101
- Material conformance FDA 21 CFR 177.2600
