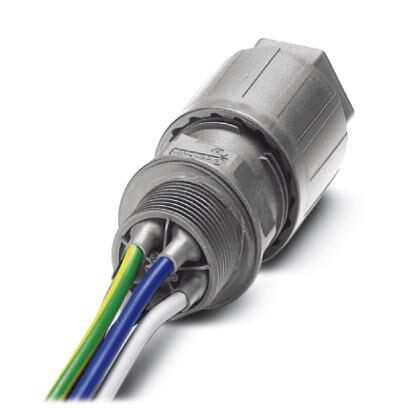

Phoenix Contact 1403728

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 100 °C
• Ambient temperature (storage/transport)
  • -40 °C - 80 °C
• Degree of protection
  • IP66
  • IP69K
  • IP68 (2 m / 24 h)
• Temperature when conductor connected
  • -5 °C - 50 °C

Cabel

• Conductor cross section
  • 2.5 mm²
• Contact | Color (signal designation) | Contact (optional)
  • 3 | GY
  • 2 | BN
  • N | BU
  • PE | GN/YE
  • 1 | BK
• External cable diameter
  • 6 mm - 10 mm
  • 6 mm - 11 mm
• Position marking
  • 1, 2, L, N, PE
• Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
  • VDE 0295 class 1 to 6/min. 0.15 mm
• Wire colors
  • black, brown, gray, blue, green/yellow
• Wire diameter including insulation
  • 2 mm - 3.8 mm
• Wire insulation material
  • PVC / PE

Electrical characteristics

• Nominal current IN
  • 20 A
• Nominal voltage UN
  • 690 V DC
  • 690 V AC
• Rated current
  • 20 A
• Rated surge voltage (II/2)
  • 8 kV
• Rated surge voltage (III/2)
  • 8 kV
• Rated surge voltage (III/3)
  • 6 kV
• Rated voltage (II/2)
  • 1000 V
• Rated voltage (III/2)
  • 1000 V
• Rated voltage (III/3)
  • 690 V

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'

Material data

• Contact carrier material
  • PA
• Contact material
  • Cu
• Contact surface material
  • silver-plated
• Degree of pollution
  • 3
• Flammability rating according to UL 94
  • V0
• Insulating material
  • PA
• Overvoltage category
  • III

Mechanical characteristics

• Category of shock impact
  • IK07
• QUICKON connectability
  • max. 10

Standards and Regulations

• Flammability rating according to UL 94
  • V0
