Description

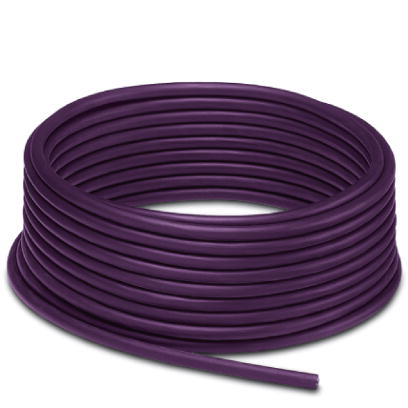

Bus system cable, DeviceNet™, 4-position, FRNC, red/lilac RAL 4001, shielded, free cable end, on free cable end, cable length: 100 mBus system cable 1402838
Phoenix Contact 1402838 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable
- Ambient temperature (operation)
- -25 °C - 80 °C (cable, fixed installation)
- AWG power supply
- 22
- AWG signal line
- 24
- Cable structure
- 2xAWG24/19+2xAWG22/19
- Cable type
- DeviceNet™
- Cable type (abbreviation)
- 925
- Cable weight
- 70 kg/km
- Conductor cross section
- 2x 0.34 mm² (Power supply)
- 2x 0.25 mm² (Signal line)
- Conductor material
- Tin-plated Cu litz wires
- Conductor resistance
- ≤ 90 Ω/km
- Conductor structure signal line
- 19x 0.12 mm
- Conductor structure, voltage supply
- 19x 0.15 mm
- External cable diameter D
- 6.9 mm ±0,3 mm
- External sheath, color
- violet RAL 4001
- Insulation resistance
- ≥ 0.2 GΩ*km
- Material conductor insulation
- Cell PE
- Outer sheath, material
- FRNC
- Overall twist
- 2 pairs and one drain wire to the core
- Shield attenuation
- < 0.95 dB (At 125 kHz)
- < 1.64 dB (At 500 kHz)
- Shielding
- Tinned copper braided shield
- Signal type/category
- DeviceNet™
- Smallest bending radius, fixed installation
- 110 mm
- Test voltage, cable
- 2000 V
- Twisted pairs
- 2 cores to the pair
- Type of pair shielding
- Aluminum-lined polyester foil
- Wave impedance
- 120 Ω ±10 %
- Wire colors
- Red-black, blue-white
- Working capacitance
- 39.8 nF
Dimensions
- Length of cable
- 100 m
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
General data
- Number of positions
- 4
- Signal type/category
- DeviceNet™
