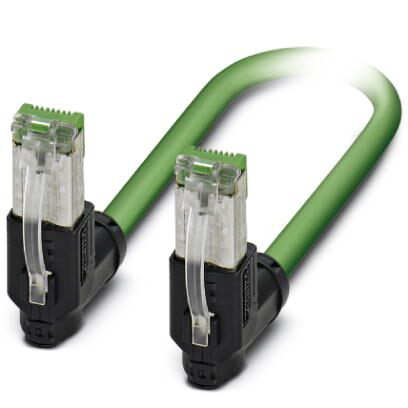

EtherCAT® patch cable, shielded, star quad, AWG 22 stranded (7-wire), green, RJ45 connector/IP 20, angled, to RJ45 connector/IP20, angled, length: 2.0 mPatch cable - VS-PNRJ45R-PNRJ45R-93G-2,0 - 1402509
Phoenix Contact 1402509 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Degree of protection
- IP20
Cable
- Ambient temperature (installation)
- -20 °C - 60 °C
- Ambient temperature (operation)
- -40 °C - 70 °C (cable, fixed installation)
- -40 °C - 70 °C (cable, flexible installation)
- Ambient temperature (storage/transport)
- -50 °C - 70 °C
- Attenuation
- 4 dB (at 4 МHz)
- 21.3 dB (at 100 MHz)
- 16.5 dB (at 62.5 МHz)
- 6.3 dB (at 10 MHz)
- 8 dB (at 16 MHz)
- 2.1 dB (with 1 MHz)
- 9 dB (at 20 МHz)
- 11.4 dB (at 31.25 МHz)
- AWG signal line
- 22
- Cable structure
- 1x4xAWG22/7; SF/TQ
- Cable type
- PROFINET PVC stranded CAT5
- Cable type (abbreviation)
- 93B
- Cable weight
- 67 kg/km
- Conductor cross section
- 4x 0.34 mm²
- Conductor material
- Tin-plated Cu litz wires
- Conductor structure signal line
- 7x 0.25 mm
- Core diameter including insulation
- 1.55 mm
- Coupling resistance
- ≤ 20.00 mΩ/m (at 10 MHz)
- External cable diameter D
- 6.5 mm ±0.2 mm
- External sheath, color
- green RAL 6018
- Flame resistance
- according to UL 1685 (CSA FT 4)
- Insulation resistance
- ≥ 500 MΩ*km
- Loop resistance
- ≤ 120.00 Ω/km
- Material conductor insulation
- PE
- Material, inner sheath
- PVC
- Minimum bending radius, fixed installation
- 3 x D
- Minimum bending radius, flexible installation
- 7 x D
- Near end crosstalk attenuation (NEXT)
- 60 dB (at 31.25 МHz)
- 55 dB (at 62.5 МHz)
- 63 dB (at 20 МHz)
- 50 dB (at 100 MHz)
- 76 dB (at 4 МHz)
- 80 dB (with 1 MHz)
- 65 dB (at 16 MHz)
- 70 dB (at 10 MHz)
- Nominal voltage, cable
- 600 V
- Optical shield covering
- 85 %
- Other resistance
- UV resistant According to UL 1581, Section 1200
- Outer sheath, material
- PVC
- Outer sheath thickness
- approx. 0.9 mm
- Overall twist
- Star quad
- Resistance to oil
- Resistant to oil to a limited extent
- Shielding
- Aluminum-coated foil, tinned copper braided shield
- Signal runtime
- 5.3 ns/m
- Signal speed
- 0.66 c
- Signal type/category
- EtherCAT® CAT5 (IEC 11801), 100 Mbps
- PROFINET CAT5 (IEC 11801), 100 Mbps
- Test voltage Core/Core
- 2000 V (50 Hz, 1 min.)
- Test voltage Core/Shield
- 2000 V (50 Hz, 1 min.)
- UL AWM style
- 21694
- Wave impedance
- 100 Ω ±15 Ω (at 100 MHz)
- Wire colors
- White, yellow, blue, orange
Characteristics head 1
- Ambient temperature (operation)
- -25 °C - 80 °C
- Color
- black
- Insertion/withdrawal cycles
- ≥ 750
- Material (component)
- Ni/Au (Contact surface)
- PA (Contact carriers)
- CuSn (Contact)
- PA (Housing)
Characteristics head 2
- Ambient temperature (operation)
- -25 °C - 80 °C
- Color
- black
- Insertion/withdrawal cycles
- ≥ 750
- Material (component)
- CuSn (Contact)
- Ni/Au (Contact surface)
- PA (Housing)
- PA (Contact carriers)
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
General data
- Degree of protection
- IP20
- Number of positions
- 4
- Rated voltage (III/3)
- 72 V (DC)
