Phoenix Contact 1401240
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

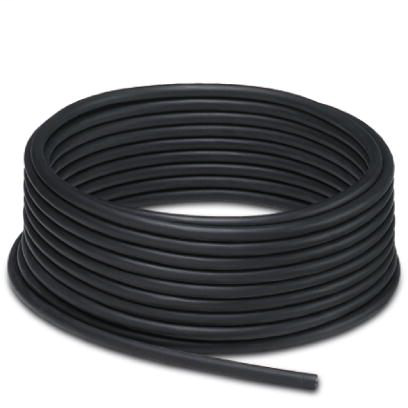

Master cable ring, application: Distributor boxes, number of positions: 11, cable length: 50 mMaster cable ring 1401240
Phoenix Contact 1401240 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable
- Ambient temperature (operation)
- -40 °C - 90 °C (cable, fixed installation)
- -5 °C - 80 °C (cable, flexible installation)
- AWG power supply
- 17
- AWG signal line
- 20
- Bending radius
- 94 mm
- Cable abbreviation
- LiYY11Y-HF
- Cable type
- PUR/PVC shielded, black
- Cable type (abbreviation)
- PUR
- Conductor cross section
- 8x 0.5 mm² (Signal line)
- 3x 1 mm² (Power supply)
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 64x 0.10 mm
- Conductor structure, voltage supply
- 128x 0.10 mm
- External cable diameter D
- 9.4 mm ±0.2 mm
- External sheath, color
- deep black RAL 9005
- Flame resistance
- DIN EN 50265
- Material conductor insulation
- PVC
- Nominal voltage, cable
- 300 V
- Number of bending cycles
- 1500000
- Other resistance
- Highly resistant to acids, alkaline solutions and solvents
- Outer sheath, material
- PUR
- Overall twist
- Wires twisted in layers
- Resistance to oil
- according to VDE 0472 Part 803
- Shielding
- Tinned copper braided shield
- Special properties
- Free of substances which would hinder coating with paint or varnish
- Silicone-free
- Test voltage, cable
- 2000 V
- Traversing path
- 2 m
- Traversing rate
- 2 m/s
- Wire colors
- brown, blue, green/yellow, white, green, yellow, gray, gray/pink, red/blue, white/green, brown/green
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Master cable data/connection data
- Cable type
- Master cable suitable for flexible cable conduit
- Length of cable
- 50 m
