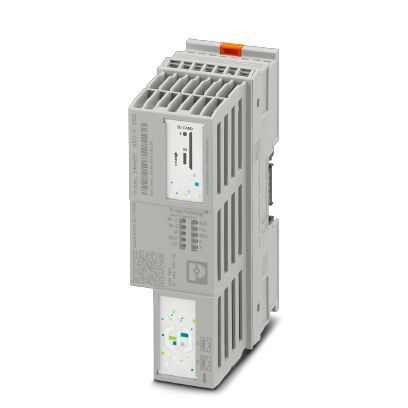

Phoenix Contact 1186852
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Device and license bundle: Preprogrammed controller based on PLCnext Control for controlling power generation systems, including Solarworx license and PGS controller license for an active power sum of up to 5 MW. Certified in accordance with VDE-AR-N 4110/-20.Controller - SOL-SA-PCU-41XX-5MW - 1186852
Phoenix Contact 1186852 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 58 kPa - 106 kPa (up to 4500 m above mean sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C up to 2000 m above mean sea level (observe derating)
- > 55 °C - 60 °C (only in conjunction with an Axioline F power module AXL F PWR 1H (order number 2688297))
- -25 °C - 55 °C up to 3000 m above mean sea level (observe derating)
- ≤ 55 °C (with max. 1 A on UBus)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport)
- 5 % - 95 % (according to DIN EN 61131-2)
- Shock
- 30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27
- Vibration (operation)
- 5g
Control system
- Cloud platform
- Proficloud
- Engineering tool
- PLCnext Engineer
- Eclipse
- Programming languages supported
- Programming in acc. with IEC 61131-3
- Java
- Manufacturer-specific
- C#
- C++
- Supports cloud computing
- yes
Data interfaces
- Connection method
- RJ45 jack
- Bus base module
- Interface
- Axioline F local bus
- Number
- 1
- 2
Dimensions
- Depth
- 75 mm
- Height
- 126.93 mm
- Width
- 45 mm
Fieldbus function
- Amount of process data
- max. 4096 Bit (Output)
- max. 4096 Bit (Input)
- Designation
- System limits of the controller
- Number of local bus devices that can be connected
- max. 63 (observe current consumption)
- Number of supported devices
- max. 63 (per station)
- Program memory
- 8 Mbyte
General data
- Operating system
- Linux
IEC 61131 runtime system
- Engineering tool
- Eclipse
- PLCnext Engineer
- Mass storage
- 16 Mbyte
- Program memory
- 8 Mbyte
- Realtime clock
- Yes
- Retentive mass storage
- 48 kByte (NVRAM)
Mechanical design
- Weight
- 215 g
PROFINET
- Device function
- PROFINET controller, PROFINET device
- Specification
- Version 2.3
- Update rate
- min. 1 ms (4 devices)
- min. 16 ms (64 devices)
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Immunity to burst
- Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV
- Immunity to conducted interference
- Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V
- Immunity to EF
- Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
- Immunity to ESD
- Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge
- Immunity to surge
- Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical), fieldbus cable shield: ±1 kV
- Interference emission
- Noise emission test as per EN 61000-6-4 Class A
- Shock
- 30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27
- Shock (operation)
- 10g (Bump endurance test according to DIN EN 60068-2-27)
- Vibration (operation)
- 5g
- Vibration (storage/transport)
- 5g
