Phoenix Contact 1179348
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

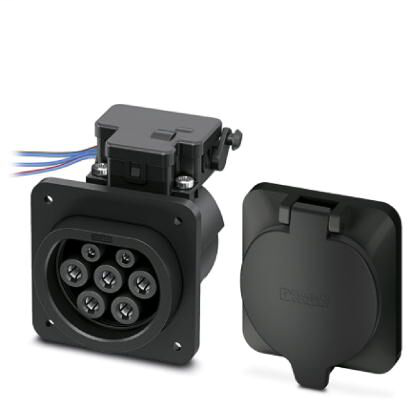

Set, Combination of infrastructure charging socket, protective cover, and seal for the discharge nozzle, Rear protective cover screw connection, Without locking actuator, For charging electric vehicles (EV) with alternating current (AC), Compatible with infrastructure charging plugs, Type 2, IEC 62196-2, Generation 1, 'PHOENIX CONTACT' logo, NOTE This product version does not include a locking actuator.Set - EV-T2M3S-3AC32A-0,3M6,0E00-SET - 1179348
Phoenix Contact 1179348 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 50 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Max. altitude
- 5000 m (above sea level)
Design
- Design line
- Generation 1
Dimensions
- Bore dimensions
- 60 mm x 60 mm
- Depth
- 70.8 mm
- Height
- 79.5 mm
- Width
- 75 mm
Electrical properties
- Maximum charging power
- 22 kW
- Note on the connection method
- Crimp connection, cannot be disconnected
- Number of phases
- 3
- Type of charging current
- AC 3-phase
- Type of signal transmission
- Pulse width modulation
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 10;
Material
- Material
- Plastic
- Material surface of contacts
- Ag
Product definition
- Affixed logo
- PHOENIX CONTACT' logo
- Application
- Compatible with infrastructure charging plugs
- For charging electric vehicles (EV) with alternating current (AC)
- Charging mode
- Mode 3, Case B
- Charging standard
- Type 2
- Design
- Generation 1
- Note
- Make sure that the Infrastructure Plug is locked into the Infrastructure Socket Outlet during the charging process according to IEC 61851-1. We recommend using our locking actuators (1624129, 1622317). If another type of locking is selected, we recommend sealing the mounting surface (1621465), see also accessories.
- NOTE This product version does not include a locking actuator.
- Note on the connection method
- Crimp connection, cannot be disconnected
- Standards/regulations
- IEC 62196-2
- Type
- Combination of infrastructure charging socket, protective cover, and seal for the discharge nozzle
- Without locking actuator
- Rear protective cover screw connection
