Phoenix Contact 1118967
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

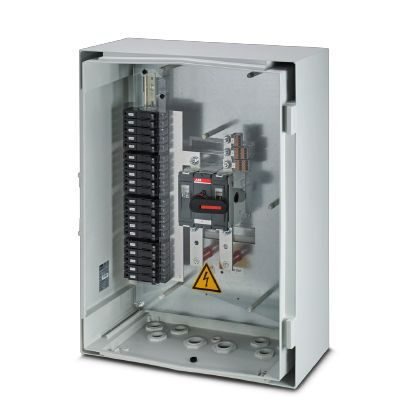

String combiner box for photovoltaic systems up to 1500 V DC for the connection of up to 20 strings. With one-sided fuse protection via fuse holder and DC isolator. Cable entry via multi-cable gland. Including 15 A fuse-links.String combiner box (SCB) - SOL-SC-20ST-1-15F1-00000131 - 1118967
Phoenix Contact 1118967 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C (Derating starting at 45°C)
Cable entry
- Bolt diameter output (cable lug)
- 12 mm
- Cable cross section output
- 300 mm²
- Cable cross section string input
- 4 mm² - 6 mm²
- Sealing area output
- 16 mm - 28 mm
- Sealing area string input
- 5 mm - 7 mm
- Type of cable entry
- Cable gland
Dimensions
- Outer dimensions: width, height, depth
- 635 mm x 835 mm x 300 mm (Housing dimensions)
General data
- Degree of protection
- IP65
- Housing material
- Fiberglass-reinforced plastic
- Impact strength
- IK10
- Installation location
- Outdoor installation, roofed area, no direct sunlight
- Protection class
- II
Safety equipment
- String fuse
- 10.3 x 85 mm, 15 A (in scope of delivery)
Standards and Regulations
- Standards/specifications
- IEC 61439-2
System parameter
- Current per string (max.)
- 12.5 A (Imax, up to 19°C)
- Current per string (typical)
- 9 A (Inc, up to 50°C)
- 10 A (Inc, up to 45°C)
- Number of outputs
- 1
- Number of string inputs
- 20
- Number of supported MPP trackers
- 1
- Switching capacity
- 315 A (1500 V DC)
- System voltage
- 1500 V DC (Umax)
