Phoenix Contact 1095968
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

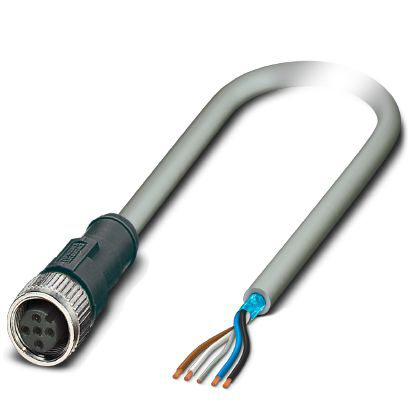

Sensor/actuator cable, 5-position, PVC, gray, shielded, free cable end, on Socket straight M12, coding: A, cable length: 10 m, Foil shielding plus drain wireSensor/actuator cable - SAC-5P-10,0-680/M12FS FDP - 1095968
Phoenix Contact 1095968 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (Plug / socket)
- Degree of protection
- IP68
- IP67
- IP65
Cable
- Ambient temperature (operation)
- -30 °C - 105 °C (cable, fixed installation)
- AWG signal line
- 22
- Cable type
- PVC, gray, 105°C
- Cable type (abbreviation)
- 680
- Cable weight
- 45.42 kg/km
- Conductor material
- Tin-plated Cu litz wires
- Conductor resistance
- max. 51.1 Ω/km (20 °C)
- Core diameter including insulation
- 1.27 mm ±0.03 mm
- External cable diameter D
- 5.08 mm ±0.2 mm
- External sheath, color
- gray
- Flame resistance
- FT4
- Insulation resistance
- ≥ (550 M Ohms/m @ 500V)
- Material conductor insulation
- PVC (Signal line)
- Minimum bending radius, flexible installation
- 8 x D
- Nominal voltage, cable
- 300 V
- Other resistance
- UV resistant
- Outer sheath, material
- PVC
- Overall twist
- Conductors, fillers, and drain wire are twisted with left-hand lay
- Shielding
- Plastic-coated aluminum foil connection with a drain wire
- Special properties
- UL standards PLTC and ITC
- Type of pair shielding
- Plastic-coated aluminum foil, aluminum side inside
- UL AWM style
- 2517 (105 °C / 300 V)
- Wire colors
- brown, white, blue, black
Dimensions
- Length of cable
- 10 m
Material
- Contact carrier material
- TPU GF
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU, hardly inflammable, self-extinguishing
- Sealing material
- NBR
Standards and Regulations
- Flammability rating according to UL 94
- HB
- Standards/specifications
- M12 connector IEC 61076-2-101
