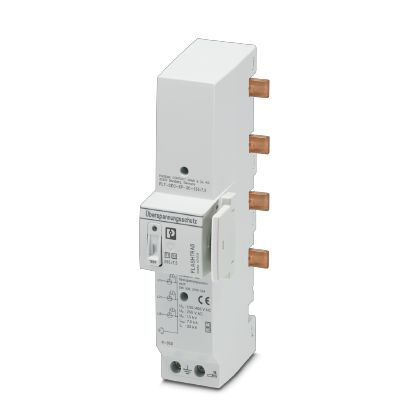

Phoenix Contact 1074739
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Lightning current arrester, in acc. with type 1/class I, for 3-phase power supply networks, with combined N and PE (L1, L2, L3, PEN). Suitable for equipotential bonding in systems without external lightning protection with and without overhead line supply. For mounting on 40 mm busbar systems.Combination type 1/2 protective device - FLT-SEC-ZP-3C-255/7,5 - 1074739
Phoenix Contact 1074739 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 6000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP30 (Installed)
- Permissible humidity (operation)
- 5 % - 95 %
Connection data
- Conductor cross section flexible
- 2.5 mm² - 35 mm²
- Conductor cross section solid
- 2.5 mm² - 35 mm²
- Connection method
- Screw connection
- Screw thread
- M5
- Stripping length
- 18 mm
- Tightening torque
- 4.5 Nm
Dimensions
- Depth
- 110.7 mm
- Height
- 223.2 mm
- Horizontal pitch
- 3 Div.
- Width
- 52 mm (with spacer lid)
- 47 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Follow current interrupt rating Ifi
- 25 kA
- Impulse discharge current (10/350) µs, charge
- 3.75 As
- Impulse discharge current (10/350) µs, peak value limp
- 7.5 kA
- Impulse discharge current (10/350) µs, specific energy
- 15 kJ/Ω
- Max. backup fuse with branch wiring
- 250 A (gG)
- Maximum continuous voltage UC
- 255 V AC
- Nominal discharge current In (8/20) µs
- 20 kA
- Nominal frequency fN
- 50 Hz (60 Hz)
- Nominal voltage UN
- 230/400 V AC (TN-C)
- Response time tA
- ≤ 100 ns
- Short-circuit current rating ISCCR
- 25 kA
- TOV behavior at UT
- 442 V AC (120 min / safe failure mode)
- 337 V AC (5 s / withstand mode)
- Voltage protection level Up
- ≤ 1.5 kV
Standards and Regulations
- Standards/regulations
- EN 61643-11 2012
- IEC 61643-11 2011
