Phoenix Contact 1067889
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

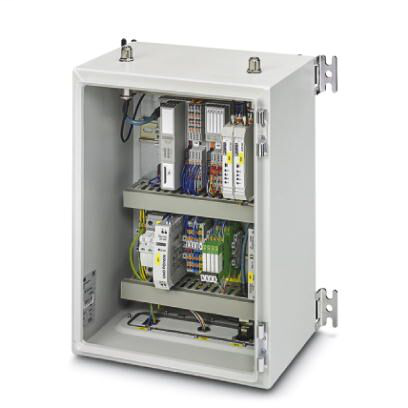

Sensor-supported evaluation unit, component of the ID-S ice detection system, with 39 sensors ID-S-S 868, communication via 868 MHz frequency band as well as Modbus/TCP and PROFINETSwitchgear and controlgear assembly - WIL-ID-S-868MHZ-RESTART-39 - 1067889
Phoenix Contact 1067889 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 hPa - 106 kPa (up to 3000 m above mean sea level)
- Ambient temperature (operation)
- -25 °C - 50 °C
- Permissible humidity (operation)
- ≤ 95 % (at 25 °C, non-condensing)
Dimensions
- Outer dimensions: width, height, depth
- 300 mm x 400 mm x 210 mm
- 354 mm x 467 mm x 210 mm (With wall mounting brackets and connections)
General data
- Degree of protection
- IP54
- Housing material
- Sheet steel
- Protection class
- I
- RAL color
- 7035
- Weight
- 10.3 kg
Technical characteristics
- Control voltage
- 24 V DC
- Frequency range
- 863 MHz - 870 MHz (typical: 868 MHz)
- Nominal current control voltage
- 1.25 A
- Nominal current IN
- 0.13 A
- Nominal power
- 30 W
- Nominal voltage UN
- 230 V AC (50 Hz)
- Recommended backup fuse
- 6 A (Characteristic B, 1-pos.)
- Recommended backup fuse for 230 V AC
- 6 A (Characteristic B, 1-pos.)
