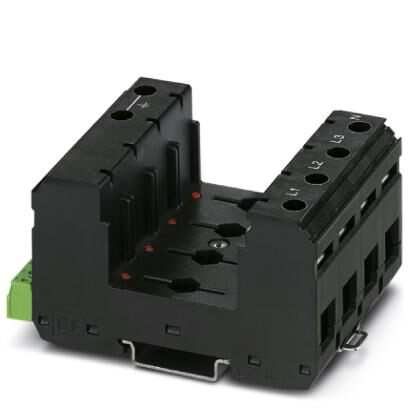

Phoenix Contact 1065864
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Base element for type 2 arresters of the VALVETRAB MS series of products, with remote indication contact. Version for 3-phase power supply with separate installation of N and PE conductors.Type 2 surge protection base element - VAL-MS-T1/T2 3+1-BE/FM/10 - 1065864
Phoenix Contact 1065864 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20 (only when all terminal points are used)
- Permissible humidity (operation)
- 5 % - 95 %
- Shock (operation)
- 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation)
- 7.5g (10 - 500 Hz / 2.5 h / X, Y, Z)
Connection data
- Conductor cross section AWG
- 15 - 2
- Conductor cross section flexible
- 1.5 mm² - 25 mm²
- 1.5 mm² - 16 mm²
- Conductor cross section solid
- 1.5 mm² - 35 mm²
- Connection method
- Fork-type cable lug
- Screw connection
- Screw thread
- M5
- Stripping length
- 16 mm
- Tightening torque
- 4.5 Nm (25 mm² - 35 mm²)
- 3 Nm (1.5 mm² - 16 mm²)
Dimensions
- Depth
- 51.5 mm (incl. DIN rail 7.5 mm)
- Height
- 98.7 mm
- Horizontal pitch
- 4 Div.
- Width
- 71 mm
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Indicator/remote signaling
- Conductor cross section AWG
- 28 - 16
- Conductor cross section flexible
- 0.14 mm² - 1.5 mm²
- Conductor cross section solid
- 0.14 mm² - 1.5 mm²
- Connection method
- Plug-in/screw connection via COMBICON
- Operating current
- 5 mA AC - 750 mA AC
- 1 A DC
- Operating voltage
- 5 V AC - 250 V AC
- 30 V DC
- Screw thread
- M2
- Stripping length
- 7 mm
- Switching function
- PDT contact
- Tightening torque
- 0.25 Nm
Protective circuit
- Max. backup fuse with branch wiring
- 125 A (gG)
- Max. backup fuse with V-type through wiring
- 80 A (gG)
- Maximum continuous voltage UC
- 500 V AC
- Nominal frequency fN
- 50 Hz (60 Hz)
- Rated load current IL
- 80 A
- Short-circuit current rating ISCCR
- 25 kA
Standards and Regulations
- Standards/regulations
- EN 61643-11 2012
- IEC 61643-11 2011
