Phoenix Contact 1047768
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

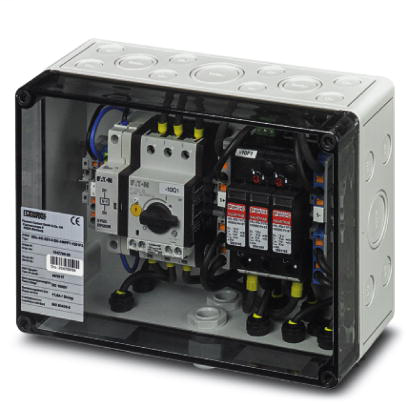

String combiner box for photovoltaic systems up to 1000 V DC for the connection of 1x 3 strings. With surge protection, DC fire service switch disconnector, and SUNCLIX DC connector for the input and output side.String combiner box (SCB) 1047768
Phoenix Contact 1047768 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 45 °C
Cable entry
- Cable cross section emergency stop
- 3x 0.14 mm² - 2.5 mm²
- Cable cross section grounding
- 16 mm²
- Cable cross section output
- 6 mm² - 16 mm²
- Cable cross section string input
- 2.5 mm² - 6 mm²
- Sealing area emergency stop
- 6 mm - 12 mm
- Sealing area grounding
- 6 mm - 12 mm
- Type of cable entry
- SUNCLIX
Dimensions
- Outer dimensions: width, height, depth
- 254 mm x 180 mm x 111 mm (Housing dimensions)
General data
- Degree of protection
- IP65
- Material cover/door
- Polycarbonate (transparent)
- Protection class
- II
Safety equipment
- Protection level Up
- ≤ 3.5 kV
- Surge protective device
- T1 / T2
- Total discharge current Itotal (10/350) µs
- 5 kA
- Total discharge current Itotal (8/20) µs
- 40 kA
System parameter
- Current per string (max.)
- 10 A (Imax)
- Number of outputs
- 1
- Number of supported MPP trackers
- 1
- Switching capacity
- 30 A (1000 V)
- System voltage
- 1000 V DC (Umax)
