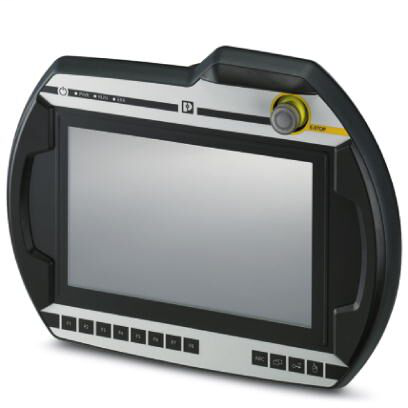

Phoenix Contact 1047318

Ambient conditions

• Ambient temperature (operation)
  • 0 °C - 45 °C
• Ambient temperature (storage/transport)
  • -25 °C - 70 °C
• Degree of protection
  • IP65
• LABS freedom
  • LABS zone III (in accordance with VDMA 24364:2018-05)
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)
• Shock
  • 15g, 11 ms, in accordance with EN 61131-2
• Vibration (operation)
  • 1g, Criterion 1, according to IEC 60068-2-6

Computer data

• Interfaces
  • 1x USB 2.0
• Mass storage
  • Flash SSD, 32 GB
• Network
  • 1 x Ethernet (10/100 Mbps), RJ45
• Operating system
  • Windows® 10 IoT Enterprise LTSB 2016 (64-bit), Multi-language
• Processor
  • Intel® Atom™ E3815 1.46 GHz
• RAM
  • 4 GB DDR3
• Slots
  • 1x SD
• User software
  • Portico

Device supply

• Power supply unit
  • 24 V DC ±20 %
• Supply voltage range
  • 19.2 V DC - 30 V DC (according to EN 61131-2)

Dimensions

• Outer dimensions: width, height, depth
  • 353 mm x 274 mm x 110 mm (with handle and emergency stop)

Display

• Backlighting
  • LED
• Display
  • 25.7 cm / 10.1" TFT
• Screen resolution
  • 1280 x 800 Pixel(s) (WXGA)
• Touch technology
  • analog resistive (polyester)

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 10;
• REACh SVHC
  • Lead 7439-92-1

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• LABS freedom
  • LABS zone III (in accordance with VDMA 24364:2018-05)
• Shock
  • 15g, 11 ms, in accordance with EN 61131-2
• Vibration (operation)
  • 1g, Criterion 1, according to IEC 60068-2-6
