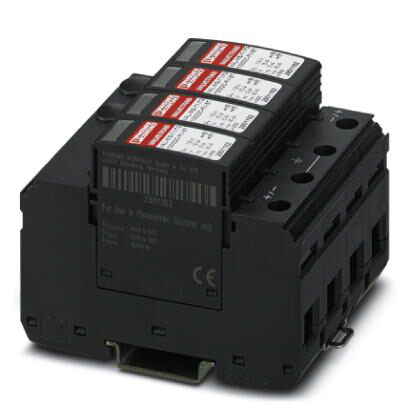

Phoenix Contact 1044183
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Lightning current arrester/surge protective device for 2-pos. isolated 1000 V DC voltage systems, for DIN rail mounting, 4-pos. base element, four pluggable temperature-monitored protective elements, status message at each plug.Lightning/surge arrester type 1/2 - VAL-MS-T1/T2 1000DC-PV/3+V/32 - 1044183
Phoenix Contact 1044183 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional descriptions
- Note
- The device is intended for touch proof installation in a housing. Ensure that there is a gap of at least 8 mm between the active and grounded parts in the connection area.
Ambient conditions
- Altitude
- ≤ 3000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 85 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20 (only when all terminal points are used)
- Permissible humidity (operation)
- 5 % - 95 %
- Shock (operation)
- 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation)
- 5g (5-500 Hz/2.5 h/XYZ)
Connection data
- Conductor cross section AWG
- 15 - 2
- Conductor cross section flexible
- 1.5 mm² - 25 mm²
- 1.5 mm² - 16 mm²
- Conductor cross section solid
- 1.5 mm² - 35 mm²
- Connection method
- Screw connection
- Fork-type cable lug
- Screw thread
- M5
- Stripping length
- 16 mm
- Tightening torque
- 4.5 Nm (25 mm² - 35 mm²)
- 3 Nm (1.5 mm² - 16 mm²)
Dimensions
- Depth
- 65.7 mm (incl. DIN rail 7.5 mm)
- Height
- 89.8 mm
- Horizontal pitch
- 4 Div.
- Width
- 71.2 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Protective circuit DC voltage side (DC)
- Continuous operating current ICPV
- < 20 µA
- Impulse discharge current (10/350) µs, charge
- 2.5 As
- Impulse discharge current (10/350) µs, peak value limp
- 5 kA
- Impulse discharge current (10/350) µs, specific energy
- 6.25 kJ/Ω
- Insulation resistance Riso
- > 5 GΩ (at 500 V DC)
- Maximum continuous operating voltage UCPV
- 1170 V DC
- Maximum discharge current Imax (8/20) µs
- 40 kA
- Nominal discharge current (8/20) µs
- 15 kA
- Rated load current IL
- 80 A
- Residual current IPE
- ≤ 700 µA AC
- ≤ 40 µA DC
- Response time tA
- ≤ 25 ns
- Short-circuit current rating ISCPV
- 2000 A
- Standby power consumption PC
- ≤ 25 mVA
- Total discharge current Itotal (10/350) µs
- 10 kA
- Total discharge current Itotal (8/20) µs
- 40 kA
Standards and Regulations
- Standards/regulations
- EN 50539-11 2013
