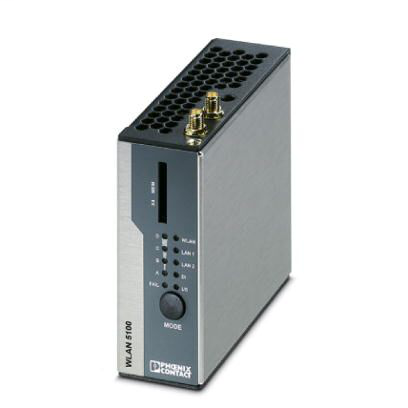

Phoenix Contact 1043193
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
WLAN access point, client, WLAN 802.11 a, b, g, n, frequency: 2.4 GHz, 5 GHz, IP20, connections: COMBICON for 10 ... 36 V DC, 2x RJ45 for LAN, central cluster management, WBM, 802.11i: WPA2, WPA-PSK, TKIP, AES, connections for 2 antennas (MIMO technology)Wireless module - FL WLAN 5110 - 1043193
Phoenix Contact 1043193 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 800 hPa - 1080 hPa (up to 2000 m above sea level)
- Air pressure (storage/transport)
- 660 hPa - 1080 hPa (up to 3500 m above sea level)
- Ambient temperature (operation)
- -25 °C - 60 °C (extended temperature range on request)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 10 % - 95 % (non-condensing)
Antenna
- Assembly instructions
- Antennas not included in scope of supply
- Number
- 2
Dimensions
- Depth
- 109 mm
- Height
- 109 mm
- Note on dimensions
- Height with antenna socket, without antenna cable
- Width
- 40 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Ethernet interface
- Connection method
- RJ45
- Interface
- Ethernet (RJ45)
- Note on the connection method
- Auto negotiation and autocrossing
- Signal LEDs
- Data receive, link status
- Transmission length
- 100 m (per segment)
- Transmission physics
- Copper
- Transmission speed
- 10/100 Mbps
Functions
- Automatic channel selection
- Yes
- Configuration
- Cluster management, web-based management, WPS
- Operating modes
- Access Point / Client Adapter / Repeater
- Security
- TKIP
- Supports 802.1X/RADIUS
- WPA PSK (preshared key)
- MAC filter
- WPA2
- 802.11i
- AES
Power supply for module electronics
- Connection method
- Via COMBICON
- Supply current
- 200 mA (at 24 V DC)
- Supply voltage
- 24 V DC
- Supply voltage range
- 10 V DC - 36 V DC
Standards and Regulations
- Comments
- ±2.2 kV
- Contact discharge
- ± 6 kV
- Indirect discharge
- ± 6 kV
- Mechanical tests
- Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g, 10 - 150 Hz
- Broadband noise according to EN 60068-2-64 Category 1, Class B
- Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g, 16 ms, 6000 shocks
- Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms half-sine shock pulse
- Standards/regulations
- EN 61000-4-4
- EN 61000-4-3
- EN 55022
- EN 61000-4-2
- Test result
- Class B
Wireless card
- Assembly instructions
- Permanently installed
- Number
- 1
- Type
- IEEE 802.11 a/b/g/n 2.4 GHz and 5 GHz to 300 Mbps
Wireless interface
- Antenna connection method
- RSMA (female)
- Designation
- Wireless LAN
- Frequency band
- 2.4 GHz
- 5 GHz
- Number
- 2
- Number of wireless interfaces
- 1 IEEE 802. 11 a/b/g/n
- Transmission power
- max. 20 dBm
- Wireless standard
- a
- n
- g
- b
- IEEE 802.11
