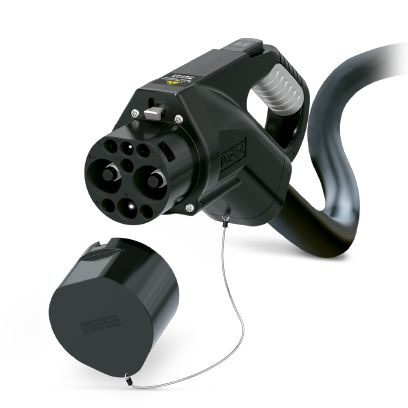

Phoenix Contact 1031381

Ambient conditions

• Ambient temperature (operation)
  • -30 °C - 50 °C
• Ambient temperature (storage/transport)
  • -40 °C - 80 °C
• Degree of protection
  • IP54 (Protective cap)
  • IP55 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products)
• Max. altitude
  • 5000 m (above sea level)

Cable

• Cable resistance
  • ≤ 0.000554 Ω/m (based on a power core, at an ambient temperature of 20°C)
• Cable structure
  • 2 x 35 mm² + 1 x 25 mm² + 2 × 4 mm² + (2 × 0.75 mm²) P + 10 x 0.75 mm²
• External cable diameter
  • 31.6 mm ±0.4 mm
• External sheath, color
  • black
• Minimum bending radius
  • 158 mm (5 x diameter)
• Outer sheath, material
  • TPU
• Type of conductor
  • straight
• Wiring certifications
  • CQC1105-2015
• Wiring class
  • Class 5/6
• Wiring standards/regulations
  • GB/T 33594-2017

Design

• Actuating element color
  • black
• Color handle area
  • gray
• Color protective cap
  • black
• Customer variations
  • On request
• Design line
  • Standard
• Housing color
  • black
• Label
  • 14.1 mm x 44.8 mm (customer logo on request)
• Mating face color
  • black

Dimensions

• Conductor length
  • 5 m
• Depth
  • 279.4 mm (Vehicle charging connector)
• Height
  • 137.8 mm (Vehicle charging connector)
• Stripping length
  • 150 mm ±20 mm
• Width
  • 77 mm (Vehicle charging connector)

Electrical properties

• Maximum charging power
  • 125 kW
• Note on the connection method
  • Crimp connection, cannot be disconnected
• Number of power contacts
  • 3 (PE, DC+, DC-)
• Number of signal contacts
  • 6 (S+, S-, A+, A-, CC1, CC2)
• Rated current for signal contacts
  • 2 A ((S+, S-, CC1, CC2))
  • 20 A ((A+, A-))
• Rated current of power contacts
  • 125 A
• Rated voltage for power contacts
  • 1000 V DC
• Rated voltage for signal contacts
  • 30 V
• Resistor coding
  • 1000 Ω (between PE and CC1 / PE and CC2)
• Temperature monitoring
  • 2x Pt 1000
• Type of signal transmission
  • according to GB/T 27930-2015

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 10;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'

Locking

• Current supply duration
  • 50 ms - 100 ms (NOTE: Continuous current supply > 100 ms damages the locking actuator)
• Locking current
  • 2 A
• Locking detection
  • Spower+ (WHBU) and Spower- (WHPK) must also be supplied with 12 V on a continuous basis
  • Maximum of 24 V / 14 mA via signal lines Lock Detection+ (WHOG) and Lock Detection- (WHBN)
• Locking type
  • Locking option for actuating lever with actuators integrated in the Vehicle Connector

Material

• Actuating lever material
  • Metal
• Flammability rating
  • V0
• Housing material
  • Plastic
• Material handle area
  • Soft plastic
• Material mating face
  • Plastic
• Material protective cap
  • Plastic
• Material surface of contacts
  • Ag

Mechanical properties

• Insertion force
  • < 100 N
• Insertion/withdrawal cycles
  • > 10000
• Withdrawal force
  • < 100 N

Product definition

• Affixed logo
  • PHOENIX CONTACT' logo
• Application
  • For installation at charging stations for electromobility (EVSE)
  • For charging electric vehicles (EV) with direct current (DC)
• Charging mode
  • Mode 4
• Charging standard
  • GB/T
• Design
  • Generation 2
• Standards/regulations
  • GB/T 20234.1-2015, GB/T 20234.3-2015
• Type
  • DC charging cable
  • With protective cap
  • With vehicle charging connector and open cable end
  • Housing color black-gray
  • With temperature sensors

Temperature sensors

• Long-term stability (max. R0-Drift)
  • 0.06 % (After 1000 hours at 130°C)
• Recommended measured current
  • 1 mA (1 V at 0°C)
• Shutdown temperature
  • 90 °C equivalent to a Pt 1000 value of 1346.5 Ω
• Standards/regulations
  • DIN EN 60751
• Temperature coefficient (TCR)
  • 3850 ppm/K
• Temperature range
  • -50 °C - 130 °C
• Tolerance at the sensor with the recommended measured current
  • ±1K
• Type of sensor
  • Pt 1000
