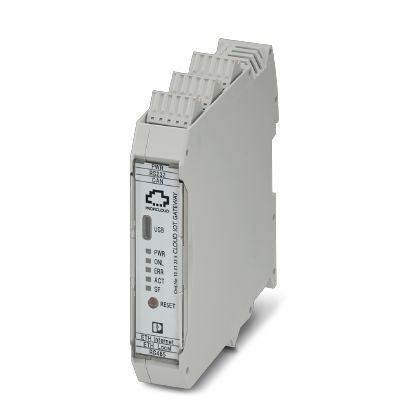

Phoenix Contact 1031235
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cloud IoT gateway for integrating new and existing systems without additional engineering costs. Thanks to simple process connection using protocols such as Modbus/TCP, sensor and process data can be collected, processed, and monitored in the Proficloud.IoT gateway - CLOUD IOT GATEWAY - 1031235
Phoenix Contact 1031235 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 58 kPa - 106 kPa (up to 4500 m above mean sea level)
- Ambient temperature (operation)
- -25 °C - 55 °C up to 2000 m above mean sea level
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 30 % - 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport)
- 5 % - 95 %
- Shock
- 30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27
Control system
- Cloud platform
- Proficloud
- Supports cloud computing
- yes
Data interfaces
- Connection method
- USB type C
- COMBICON connectors
- RJ45
- Interface
- Ethernet
- RS-232
- Service
- RS-485
- Number
- 2
- 1
- Protocols supported
- Modbus/TCP, HTTPS
- Modbus/RTU
- Modbus/RTU (Master)
- Transmission speed
- 100 Mbps
Dimensions
- Depth
- 114.5 mm
- Height
- 99 mm
- Width
- 22.5 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
General data
- Processor
- Arm® Cortex®-A8 1x 600 MHz
IEC 61131 runtime system
- Realtime clock
- Yes
Mechanical design
- Note on weight specifications
- with connectors
- Weight
- 144.5 g
Power supply
- Supply voltage
- 24 V DC -20 % / +15 %
- Supply voltage range
- 18 V DC - 30 V DC
- Typical current consumption
- 200 mA
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Immunity to burst
- Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV
- Immunity to conducted interference
- Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V
- Immunity to EF
- Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
- Immunity to ESD
- Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge
- Immunity to surge
- Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical), fieldbus cable shield: ±1 kV
- Interference emission
- Noise emission test according to EN 61000-6-3 Class B
- Shock
- 30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27
- Shock (operation)
- 10g (Bump endurance test according to DIN EN 60068-2-27)
