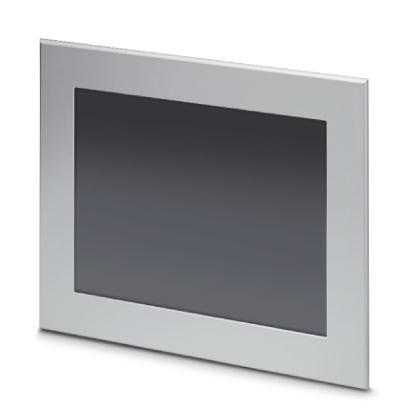

Phoenix Contact 1029309
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Rugged touch panel with 38.1 cm / 15" TFT display (analog-resistive (GFG)), 1024 x 768 pixels (XGA), degree of protection: IP65 (front), extended temperature range, Arm® Cortex® A8, 1000 MHz, Windows® Embedded Compact 7 and Visu+ application software.Touch panel - TP 3150S/WT-65 - 1029309
Phoenix Contact 1029309 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 70 °C
- Ambient temperature (storage/transport)
- -30 °C - 80 °C
- Degree of protection
- IP65 (front), IP20 (back)
- Permissible humidity (operation)
- 20 % - 85 % (On the rear)
- 5 % - 95 % (Front)
- Shock
- 15g, according to IEC 60068-2-27
- Vibration (operation)
- 1g, according to EN 60068-2-6
Computer data
- Bus system
- without
- Interfaces
- 2x USB 2.0
- Mass storage
- NAND-Flash, 1 GB
- Network
- 1 x Ethernet (10/100 Mbps), RJ45
- Operating system
- Windows® Embedded Compact 7
- Processor
- Arm® Cortex®-A8, 1000 MHz
- RAM
- 1 MB SRAM
- 512 MB LPDDR SDRAM
- Realtime clock
- Yes
- Service life of battery
- 5 years (typical)
- Slots
- 1x SD
- User software
- Visu+
Device supply
- Power supply unit
- 24 V DC ±20 %
- Typical current consumption
- 0.7 A
Dimensions
- Installation dimensions: width, height, depth
- 379 mm x 302 mm x 64 mm (Mounting cutout, depth with bus if bus system present in the device)
- Outer dimensions: width, height, depth
- 406 mm x 329 mm x 5 mm (Dimensions of the front plate)
Display
- Backlighting
- LED
- Brightness
- 480 cd/m² typical (adjustable)
- Colors
- 65536 colors
- Display
- 38.1 cm/15" TFT
- Display backlight MTBF
- 50000 h
- Readability in sunlight
- yes
- Reading angle bottom
- 80 °
- Reading angle left
- 80 °
- Reading angle right
- 80 °
- Reading angle top
- 65 °
- Screen resolution
- 1024 x 768 Pixel(s) (XGA)
- Touch technology
- Analog resistive (GFG)
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 15;
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Shock
- 15g, according to IEC 60068-2-27
- Vibration (operation)
- 1g, according to EN 60068-2-6
