Description

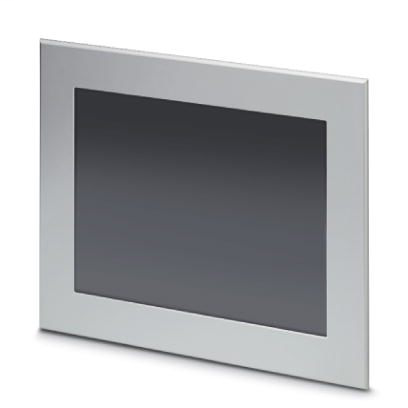

Rugged touch panel with 30.7 cm/12.1" TFT display (analog-resistive (GFG)), 1280 x 800 pixels (WXGA), degree of protection: IP67 (front), extended temperature range, Arm® Cortex® A8, 1000 MHz, Windows® Embedded Compact 7, and Visu+ application software.Touch panel 1029308
Phoenix Contact 1029308 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 70 °C
- Ambient temperature (storage/transport)
- -20 °C - 80 °C
- Degree of protection
- IP67 (front), IP20 (back)
- Permissible humidity (operation)
- 20 % - 85 % (On the rear)
- 5 % - 95 % (Front)
- Shock
- 15g, according to IEC 60068-2-27
- Vibration (operation)
- 1g, according to EN 60068-2-6
Computer data
- Bus system
- without
- Interfaces
- 2x USB 2.0
- Mass storage
- NAND-Flash, 1 GB
- Network
- 1 x Ethernet (10/100 Mbps), RJ45
- Operating system
- Windows® Embedded Compact 7
- Processor
- Arm® Cortex®-A8, 1000 MHz
- RAM
- 1 MB SRAM
- 512 MB LPDDR SDRAM
- Realtime clock
- Yes
- Service life of battery
- 5 years (typical)
- Slots
- 1x SD
- User software
- Visu+
Device supply
- Power supply unit
- 24 V DC ±20 %
Dimensions
- External dimension, depth
- 5 mm
- External dimension, height
- 248 mm
- External dimension, width
- 344 mm
- Installation dimension, depth
- 64 mm
- Installation dimension, height
- 214 mm
- Installation dimension, width
- 309 mm
- Note regarding external dimension
- Dimensions of the front plate
- Note regarding installation dimension
- Mounting cutout, depth with bus if bus system present in the device
Display
- Backlighting
- LED
- Brightness
- 320 cd/m² typical (adjustable)
- Colors
- 65536 colors
- Display
- 30.7 cm/12.1" TFT
- Display backlight MTBF
- 50000 h
- Reading angle bottom
- 88 °
- Reading angle left
- 88 °
- Reading angle right
- 88 °
- Reading angle top
- 88 °
- Screen resolution
- 1280 x 800 Pixel(s) (WXGA)
- Touch technology
- Analog resistive (GFG)
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 15;
Note
- Utilization restriction
- 1
Standards and Regulations
- Shock
- 15g, according to IEC 60068-2-27
- Vibration (operation)
- 1g, according to EN 60068-2-6
