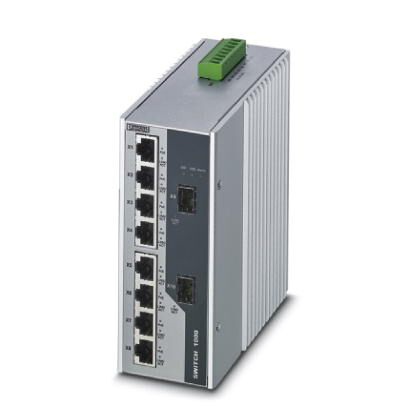

Phoenix Contact 1026929

Ambient conditions

• Air pressure (operation)
  • 57 kPa - 108 kPa (up to 4850 m above mean sea level)
• Air pressure (storage/transport)
  • 57 kPa - 108 kPa (up to 4850 m above mean sea level)
• Ambient temperature (operation)
  • -40 °C - 75 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP30
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 5 % - 95 % (non-condensing)

Connection data

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • COMBICON plug-in screw terminal block
• Stripping length
  • 7 mm

Dimensions

• Depth
  • 136 mm
• Height
  • 145 mm
• Width
  • 63.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 10;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Function

• Additional functions
  • Autonegotiation
• Basic functions
  • Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, redundant power supply, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 10240 bytes, alarm contact
• Signal contact control current
  • 0.5 A
• Signal contact control voltage
  • 48 V DC
• Status and diagnostic indicators
  • LEDs: US₁, US₂ (redundant voltage supply), Alarm (alarm contact), Link/Activity and PoE per Ethernet port

Interfaces

• Connection method
  • RJ45 jack
• Interface
  • Ethernet (PoE)
  • Fiber optic interface
• No. of ports
  • 8 (RJ45 ports)
  • 2 (SFP ports)
• Signal LEDs
  • LNK/ACT, POE
• Transmission length
  • 100 m (Between transmitter / receiver)
  • up to 80 km (Depending on the fiber/SFP module used)
• Transmission physics
  • Ethernet RJ45
  • Depending on the SFP module
• Transmission speed
  • 10/100/1000 Mbps
  • 1000 Mbps (full duplex)

Network expansion parameters

• Cascading depth
  • Network, linear, and star structure: any
• Maximum conductor length (twisted pair)
  • 100 m

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Conformance
  • CE-compliant
• Electromagnetic compatibility
  • Conformance with EMC Directive 2004/108/EC

Supply voltage

• Inrush current
  • 30.8 A (24 V DC for 1050 μs)
• Max. current consumption
  • 6.2 A (Maximum, nominal load)
• Residual ripple
  • 3.6 VPP (within the permitted voltage range)
• Supply voltage
  • 24 V DC
  • 48 V DC
• Supply voltage range
  • 18 V DC - 57 V DC
• Typical current consumption
  • 470 mA (at US = 24 V DC)
