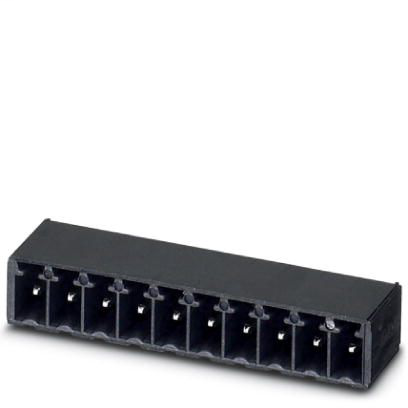

Phoenix Contact 1011103

Air clearances and creepage distances

• Insulating material group
  • IIIa
• Rated insulation voltage (II/2)
  • 250 V
• Rated insulation voltage (III/2)
  • 160 V
• Rated insulation voltage (III/3)
  • 160 V
• Rated surge voltage (II/2)
  • 2.5 kV
• Rated surge voltage (III/2)
  • 2.5 kV
• Rated surge voltage (III/3)
  • 2.5 kV

Ambient conditions

• Ambient temperature (assembly)
  • -5 °C - 100 °C
• Ambient temperature (operation)
  • -40 °C
• Ambient temperature (storage/transport)
  • -40 °C - 70 °C

Dimensions for PCB design

• Hole diameter
  • 1.4 mm

Dimensions for the product

• Caption
  • Schematic representation – for additional information, see product range drawing in the Download Center
• Dimension a
  • 22.86 mm
• Height [ h ]
  • 8.9 mm
• Height (without solder pin)
  • 6.9 mm
• Length [ l ]
  • 9.2 mm
• Pin dimensions
  • 0.8 x 0.8 mm
• Pitch
  • 3.81 mm
• Solder pin [P]
  • 2 mm
• Width [ w ]
  • 28.06 mm

Electrical parameters

• Rated current
  • 8 A
• Rated insulation voltage (III/2)
  • 160 V
• Rated surge voltage (III/2)
  • 2.5 kV

Environmental Product Compliance

• China RoHS
  • No hazardous substances above threshold values
  • Environmentally friendly use period: unlimited = EFUP-e

Item properties

• Brief article description
  • Feed-through header
• Mounting type
  • THR soldering
• Number of levels
  • 1
• Number of positions
  • 7
• Pin layout
  • Linear pinning
• Pitch
  • 3.81 mm
• Plug-in system
  • MINI COMBICON
• Range of articles
  • MC 1,5/..-G-THR
• Type of contact
  • Male connector

Material data - contact

• Contact material
  • Cu alloy
• Metal surface contact area (middle layer)
  • Nickel (1 - 3 µm Ni)
• Metal surface contact area (top layer)
  • Tin (3 - 5 µm Sn)
• Metal surface soldering area (middle layer)
  • Nickel (1.3 - 3 µm Ni)
• Metal surface soldering area (top layer)
  • Tin (3 - 5 µm Sn)
• Note
  • WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
• Surface characteristics
  • Tin-plated

Material data - housing

• CTI according to IEC 60112
  • 175
• Flammability rating according to UL 94
  • V0
• Insulating material
  • LCP
• Insulating material group
  • IIIa

Packaging information

• [A] coil diameter
  • 330 mm
• Denomination packing units
  • Pcs.
• ESD level
  • (D) electrostatically conductive
• Outer packaging type
  • Transparent-Bag
• Pieces per package
  • 330
• Specification
  • DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07
• Type of packaging
  • 44 mm wide tape
• [W2] coil overall dimension
  • 50.4 mm
• [W] tape width
  • 44 mm

Standards and Regulations

• Flammability rating according to UL 94
  • V0
