Phoenix Contact 0915797
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

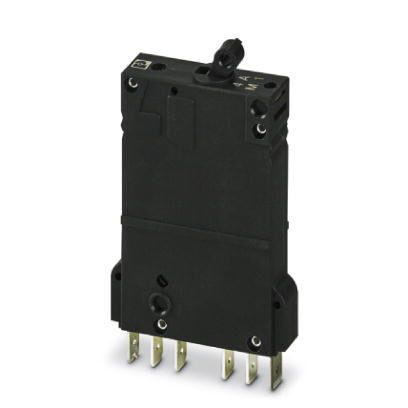

Thermomagnetic circuit breaker, 1-pos., normal blow, 1 N/O contact and 1 N/C contactThermomagnetic device circuit breaker - TMCP 1 M1 300 4,0A - 0915797
Phoenix Contact 0915797 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 60 °C
- Degree of protection
- IP30 (Actuation area)
- IP00 (Connection area)
Connection data
- Connection method
- pluggable
Dimensions
- Complete module depth
- 121 mm
- Complete module height
- 115 mm
- Complete module width
- 38 mm
- Depth
- 78.5 mm
- Height
- 50 mm
- Width
- 12.5 mm
Electrical data
- Degree of pollution
- 2
- Dielectric strength
- 3000 V AC (Actuation area)
- 1000 V AC (Auxiliary circuit 11 - 12 to 23 - 24)
- 1500 V AC (Main to auxiliary circuit)
- Fuse type
- Automatic device
- Insulating material group
- II
- Insulation resistance Riso
- > 100 MΩ (500 V DC)
- Overvoltage category
- II
- Rated current IN
- 4 A
- Rated short-circuit switching capacity Icn
- 2500 A (32 V DC)
- 400 A
- Rated surge voltage
- 2.5 kV
- Rated voltage
- 250 V AC
- 65 V DC
- Short-circuit switching capacity Ik
- 2000 A (UL 1077: 65 V DC)
- 5000 A (UL 1077: 277 V AC)
- Switching cycles, max.
- 10000 (At 1 x In, inductive)
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Standards/specifications
- EN 60934
- UL 1077
