Phoenix Contact 0914989
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

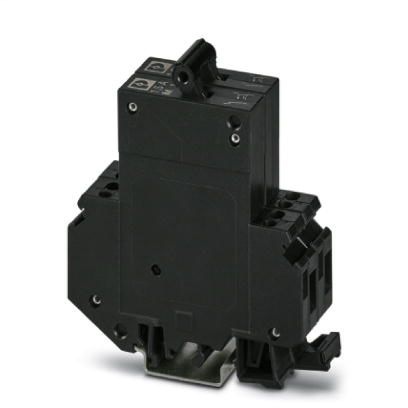

Thermomagnetic circuit breaker, 2-pos., normal blow, 1 N/O contact and 1 N/C contact, with universal foot for mounting on NS 32 or NS 35Thermomagnetic device circuit breaker 0914989
Phoenix Contact 0914989 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 60 °C
- Degree of protection
- IP20 (Connection area)
- IP30 (Actuation area)
Connection data
- 2 conductors with same cross section, solid max.
- 0.75 mm²
- 2 conductors with same cross section, solid min.
- 0.2 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.
- 1 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.
- 0.25 mm²
- 2 conductors with same cross section, stranded max.
- 0.75 mm²
- 2 conductors with same cross section, stranded min.
- 0.2 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.
- 2.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.
- 0.5 mm²
- Conductor cross section AWG max.
- 10
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 4 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.
- 4 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.
- 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.
- 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.
- 0.25 mm²
- Conductor cross section solid max.
- 6 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Screw connection
- Internal cylindrical gage
- A3
- Screw thread
- M3
- Stripping length
- 12 mm
- Tightening torque max
- 0.8 Nm
- Tightening torque, min
- 0.6 Nm
Dimensions
- Depth
- 96 mm
- Height
- 82.5 mm
- Width
- 25 mm
Electrical data
- Degree of pollution
- 2
- Dielectric strength
- 3000 V AC (Main to auxiliary circuit)
- 3000 V AC (Actuation area)
- 1500 V AC (Position to position)
- Fuse type
- Automatic device
- Insulating material group
- II
- Insulation resistance Riso
- > 100 MΩ (500 V DC)
- Overvoltage category_GRP
- II
- Rated current IN
- 1.5 A
- Rated short-circuit switching capacity Icn
- 400 A
- 2500 A (32 V DC)
- Rated surge voltage
- 2.5 kV
- Rated voltage
- 250 V AC (3 AC 433 V)
- 65 V DC
- Short-circuit switching capacity Ik
- 5000 A ()
- 2000 A (UL 1077: 65 V DC)
- Switching cycles, max.
- 10000 (At 1 x In, inductive)
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Standards/specifications
- EN 60934
- UL 1077
