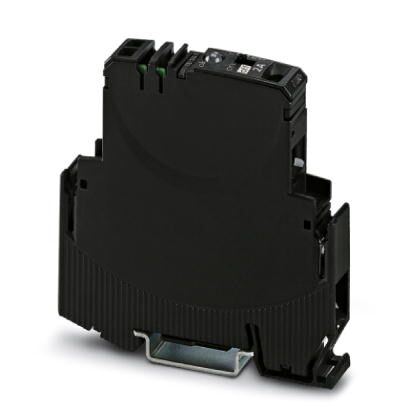

Phoenix Contact 0903033

Ambient conditions

• Ambient temperature (operation)
  • 0 °C - 50 °C (non-condensing)
• Degree of protection
  • IP20 (Housing)

Connection data

• 2 conductors with same cross section, solid max.
  • 4 mm²
• 2 conductors with same cross section, solid min.
  • 0.5 mm²
• 2 conductors with same cross section, stranded max.
  • 4 mm²
• 2 conductors with same cross section, stranded min.
  • 0.5 mm²
• Conductor cross section AWG max.
  • 6
• Conductor cross section AWG min.
  • 20
• Conductor cross section flexible max.
  • 16 mm²
• Conductor cross section flexible min.
  • 0.5 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.
  • 10 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve min.
  • 0.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.
  • 10 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.
  • 0.5 mm²
• Conductor cross section solid max.
  • 16 mm²
• Conductor cross section solid min.
  • 0.5 mm²
• Connection method
  • Screw connection
• Screw thread
  • M4
• Stripping length
  • 10 mm
• Tightening torque max
  • 1.2 Nm
• Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum
  • 6 mm²
• Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum
  • 0.5 mm²
• Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum
  • 2.5 mm²
• Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum
  • 0.5 mm²

Dimensions

• Depth
  • 80 mm
• Height
  • 83 mm
• Height NS 35/15
  • 90.5 mm
• Height NS 35/7,5
  • 83 mm
• Width
  • 12.5 mm

Electrical data

• Closed-circuit current range I0
  • typ. 25 mA ±5 mA (When switched on)
• Degree of pollution
  • 2
• Dielectric strength
  • max. 32 V DC (Load circuit)
• Fuse
  • electronic
• Fuse type
  • Automatic device
• Nominal current IN
  • 2 A
• Operating voltage
  • 24 V DC
  • 18 V DC - 32 V DC
• Rated surge voltage
  • 0.5 kV
• Required backup fuse
  • not required, integrated failsafe element
• Switching capacity ICN
  • Active current limitation

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Standards and Regulations

• Standards/specifications
  • CSA 22.2 No. 213
  • CSA 22.2 No. 14
  • UL 1604
  • UL 508
  • CSA 22.2 No. 142
  • UL 2367
