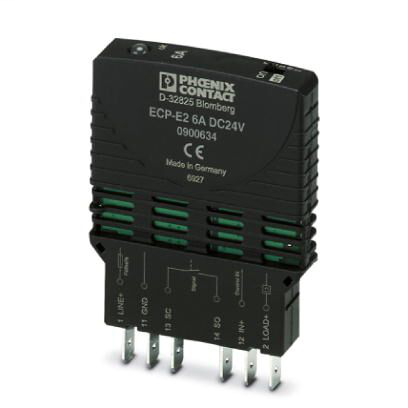

Phoenix Contact 0900634
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Electronic device circuit breaker, number of positions: 1, connection method: Screw connection, width: 12.5 mm, fuse type: electronic, fuse type: Automatic device, mounting type: on base element, Color: blackElectronic device circuit breaker - ECP-E2-6A - 0900634
Phoenix Contact 0900634 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 50 °C (non-condensing)
- Degree of protection
- IP30 (Actuation area)
Connection data
- Connection method
- Screw connection
Dimensions
- Complete module depth
- 112.5 mm
- Complete module height
- 115 mm
- Complete module width
- 38 mm
- Depth
- 70 mm
- Height
- 60 mm
- Height NS 35/15
- 151.5 mm
- Height NS 35/7,5
- 144 mm
- Width
- 12.5 mm
Electrical data
- Closed-circuit current range I0
- typ. 25 mA ±5 mA (When switched on)
- Degree of pollution
- 2
- Dielectric strength
- max. 32 V DC (Load circuit)
- Fuse
- electronic
- Fuse type
- Automatic device
- Insulating material group
- I
- Nominal current IN
- 6 A
- Operating voltage
- 24 V DC (at 50 °C (UL 2367, UL 508, ANSI/ISA 12.12.01))
- 24 V DC
- 18 V DC - 32 V DC
- Overvoltage category
- II
- Rated surge voltage
- 0.5 kV
- Required backup fuse
- not required, integrated failsafe element
- Switching capacity ICN
- Active current limitation
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Standards/specifications
- CSA 22.2 No. 14
- UL 508
- UL 2367
