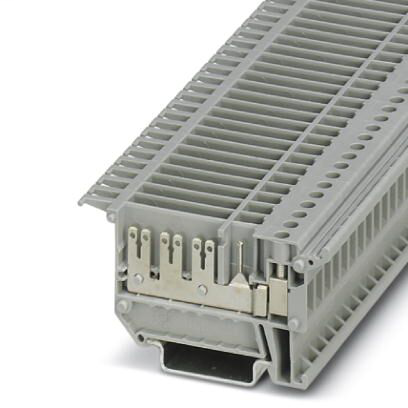

Phoenix Contact 0852067
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Phoenix Contact 0852067 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- 2 conductors with same cross section, solid max.
- 1.5 mm²
- 2 conductors with same cross section, solid min.
- 0.2 mm²
- 2 conductors with same cross section, stranded max.
- 1.5 mm²
- 2 conductors with same cross section, stranded min.
- 0.2 mm²
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.
- 4 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.
- 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.
- 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.
- 0.25 mm²
- Conductor cross section solid max.
- 4 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Screw connection
- Slip-on connection
- Cross section with insertion bridge, solid max.
- 2.5 mm²
- Cross section with insertion bridge, stranded max.
- 2.5 mm²
- Max. AWG conductor cross section, flexible
- 14
- Min. AWG conductor cross section, flexible
- 24
- Screw thread
- M3
- Stripping length
- 8 mm
- Tightening torque max
- 0.8 Nm
- Tightening torque, min
- 0.6 Nm
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum
- 1.5 mm²
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum
- 0.5 mm²
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum
- 1 mm²
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum
- 0.25 mm²
Dimensions
- End cover width
- 2.2 mm
- Height NS 35/15
- 47 mm
- Height NS 35/7,5
- 39.5 mm
- Length
- 72 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Connection in acc. with standard
- CSA
- Flammability rating according to UL 94
- V2
