Phoenix Contact 0717063
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

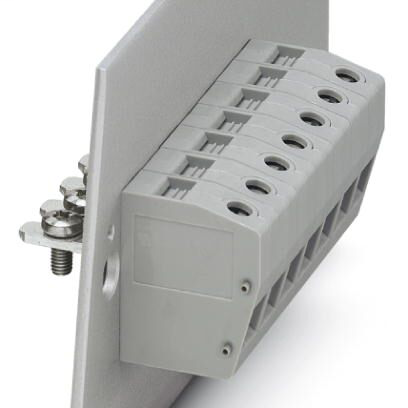

Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Cable lug connection, number of positions: 1, load current: 76 A, cross section: 0.5 mm² - 25 mm², connection direction of the conductor to plug-in direction: 0 °, width: 12.1 mm, color: grayPanel feed-through terminal block - HDFK 16-VP/Z - 0717063
Phoenix Contact 0717063 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Air clearances and creepage distances
- Minimum clearance - inhomogeneous field (III/3)
- 5.5 mm
- Minimum creepage distance value (III/3)
- 6.3 mm
Connection capacity, external
- 2 conductors with same cross section, flexible
- 0.5 mm² - 6 mm²
- 2 conductors with same cross section, flexible, with ferrule without plastic sleeve
- 0.5 mm² - 6 mm²
- 2 conductors with same cross section, solid
- 0.5 mm² - 6 mm²
- 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
- 0.5 mm² - 6 mm²
- Conductor cross section flexible
- 0.5 mm² - 16 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve
- 0.5 mm² - 16 mm²
- Conductor cross section, flexible, with ferrule, with plastic sleeve
- 0.5 mm² - 16 mm²
- Conductor cross section solid
- 0.5 mm² - 25 mm²
- Connection direction of the conductor to plug-in direction
- 0 °
- Connection method
- Screw connection with tension sleeve
- Internal cylindrical gage
- B7
- Stripping length
- 16 mm
- Torque
- 2 Nm - 2.3 Nm
Connection capacity, internal
- Cable lug connection according to standard
- M5 2.5 Nm 3 Nm
- Connection direction of the conductor to plug-in direction
- 0 °
- Connection method
- Cable lug connection
Dimensions for the product
- Height [ h ]
- 40 mm
- Length [ l ]
- 48.9 mm
- Pitch
- 12.1 mm
- Width [ w ]
- 12.1 mm
Electrical parameters
- Nominal current
- 76 A
- Nom. voltage
- 500 V
- Rated surge voltage (III/3)
- 6 kV
- Rated voltage
- 500 V
Electrical tests
- Conductor cross section
- 16 mm²
- Rated current
- 76 A
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
General product information
- Note
- To maintain the nominal voltage, align the cable lugs straight and centered, and cast the terminals on the inside.
- The cable entry funnel is not touch-proof. Never connect or disconnect the terminal when it is energized. Take appropriate steps to ensure touch proofness.
- Type of note
- Notes on safety
- Note on application
Item properties
- Brief article description
- Panel feed-through terminal block
- Connection method
- Screw connection with tension sleeve
- Number of connections
- 2
- Number of positions
- 1
- Number of potentials
- 1
- Pitch
- 12.1 mm
- Range of articles
- HDFK 16-VP
Material data - contact
- Contact material
- Cu alloy
- Note
- WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
- Surface characteristics
- tin-plated
Material data - housing
- CTI according to IEC 60112
- 600
- Flammability rating according to UL 94
- V0
- Glow wire flammability index GWFI according to EN 60695-2-12
- 850
- Glow wire ignition temperature GWIT according to EN 60695-2-13
- 775
- Housing color
- gray (7042)
- Insulating material
- PA
- Insulating material group
- I
- Temperature for the ball pressure test according to EN 60695-10-2
- 125 °C
Packaging information
- Denomination packing units
- Pcs.
- Pieces per package
- 50
Standards and Regulations
- Connection in acc. with standard
- CUL
- IEC 60947-7-1
- Flammability rating according to UL 94
- V0
