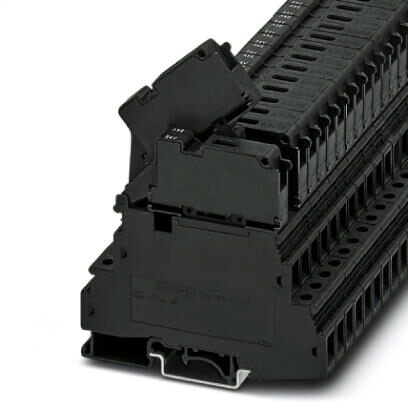

Phoenix Contact 0711632

Ambient conditions

• Ambient temperature (actuation)
  • -5 °C - 70 °C
• Ambient temperature (assembly)
  • -5 °C - 70 °C
• Ambient temperature (operation)
  • -60 °C - 85 °C
• Ambient temperature (storage/transport)
  • -25 °C - 55 °C (For a short time, not exceeding 24 h, -60 to +70 °C)
• Permissible humidity (storage/transport)
  • 30 % - 70 %

Connection data

• 2 conductors with same cross section, solid max.
  • 1.5 mm²
• 2 conductors with same cross section, solid min.
  • 0.2 mm²
• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 4 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.
  • 4 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve min.
  • 0.25 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.
  • 4 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.
  • 0.25 mm²
• Conductor cross section solid max.
  • 4 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Screw connection
• Internal cylindrical gage
  • A4
• Screw thread
  • M3
• Stripping length
  • 8 mm
• Tightening torque max
  • 0.8 Nm
• Tightening torque, min
  • 0.5 Nm
• Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum
  • 1.5 mm²
• Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum
  • 0.5 mm²
• Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum
  • 1.5 mm²
• Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum
  • 0.25 mm²

Dimensions

• Height NS 32
  • 84 mm
• Height NS 35/15
  • 86.5 mm
• Height NS 35/7,5
  • 79 mm
• Length
  • 86.5 mm
• Width
  • 8.2 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Standards and Regulations

• Connection in acc. with standard
  • IEC 60947-7-3
  • CSA
• Flammability rating according to UL 94
  • V0
