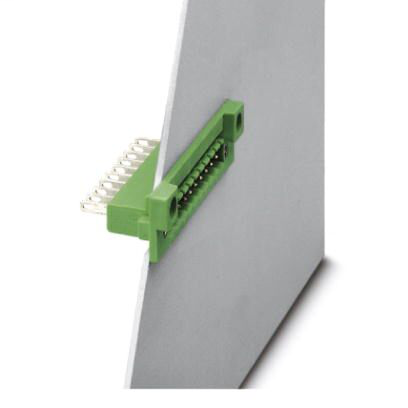

Phoenix Contact 0710154

Air clearances and creepage distances

• Clearances and creepage distances
  • IEC 60664-1:2007-04
• Minimum clearance - inhomogeneous field (II/2)
  • 3 mm
• Minimum clearance - inhomogeneous field (III/2)
  • 3 mm
• Minimum clearance - inhomogeneous field (III/3)
  • 3 mm
• Minimum creepage distance value (II/2)
  • 3.2 mm
• Minimum creepage distance value (III/2)
  • 3 mm
• Minimum creepage distance value (III/3)
  • 4 mm
• Specification
  • IEC 60664-1:2007-04

Ambient conditions

• Ambient temperature (assembly)
  • -5 °C - 100 °C
• Ambient temperature (operation)
  • -40 °C - 100 °C (dependent on the derating curve)
• Ambient temperature (storage/transport)
  • -40 °C - 70 °C

Climatic tests (D)

• Cold stress
  • -40 °C/2 h
• Corrosive stress
  • 0.2 dm³ SO₂ on 300 dm³/40 °C/1 cycle
• Impulse withstand voltage at sea level
  • 4.8 kV
• Power-frequency withstand voltage
  • 2.21 kV
• Specification
  • ISO 6988:1985-02
• Thermal stress
  • 100 °C/168 h

Connection capacity

• Conductor cross section AWG / kcmil
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Solder/Slip-on connection
• pluggable
  • Yes

Current carrying capacity / derating curves

• Specification
  • IEC 61984

Dimensions for the product

• Dimensions of slip-on connection
  • 2,8 x 0,8 mm
• Height [ h ]
  • 29.5 mm
• Height (without solder pin)
  • 20.2 mm
• Length [ l ]
  • 17.5 mm
• Pin dimensions
  • 0.8 x 2.8 mm
• Pitch
  • 5 mm
• Solder pin [P]
  • 9.3 mm
• Width [ w ]
  • 95 mm

Durability tests (B)

• Contact resistance R1
  • 1.6 mΩ
• Contact resistance R2
  • 1.7 mΩ
• Impulse withstand voltage at sea level
  • 4.8 kV
• Insertion/withdrawal cycles
  • 25
• Insulation resistance, neighboring positions
  • > 0.2 TΩ
• Power-frequency withstand voltage
  • 2.21 kV
• Specification
  • IEC 60512-9-1:2010-03

Electrical parameters

• Nominal current
  • 12 A
• Nom. voltage
  • 320 V
• Rated surge voltage (II/2)
  • 4 kV
• Rated surge voltage (III/2)
  • 4 kV
• Rated surge voltage (III/3)
  • 4 kV
• Rated voltage
  • 320 V
• Rated voltage (II/2)
  • 630 V
• Rated voltage (III/2)
  • 320 V

Environmental and durability tests (E)

• Result, degree of protection, IP code
  • Finger safety with IP20 test finger
• Specification
  • IEC 61984:2008-10

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Item properties

• Brief article description
  • Feed-through header
• Connection method
  • Solder/Slip-on connection
• Locking
  • Threaded flange
• Mounting type
  • Direct mounting
• Number of connections
  • 15
• Number of levels
  • 1
• Number of positions
  • 15
• Number of potentials
  • 15
• Pitch
  • 5 mm
• Plug-in system
  • CLASSIC COMBICON
• Range of articles
  • DFK-MSTB 2,5/..-GF
• Type of contact
  • Male connector

Material data - contact

• Contact material
  • Cu alloy
• Metal surface contact area (middle layer)
  • Nickel (2 - 3 µm Ni),
• Metal surface contact area (top layer)
  • Tin (5 - 7 µm Sn)
• Metal surface soldering area (middle layer)
  • Nickel (2 - 3 µm Ni)
• Metal surface soldering area (top layer)
  • Tin (5 - 7 µm Sn)
• Note
  • WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
• Surface characteristics
  • Tin-plated

Material data - housing

• CTI according to IEC 60112
  • 600
• Flammability rating according to UL 94
  • V2
• Housing color
  • green (6021)
• Insulating material
  • PA
• Insulating material group
  • I

Mechanical tests (A)

• Contact holder in insert requirements >20 N
  • Test passed
• Insertion strength per pos. approx.
  • 10 N
• Polarization when inserted requirement >20 N
  • Test passed
• Test specification
  • IEC 61984
• Withdraw strength per pos. approx.
  • 7 N

Packaging information

• Denomination packing units
  • Pcs.
• Pieces per package
  • 50
• Type of packaging
  • packed in cardboard

Pull-out test

• Conductor cross section / conductor type / tensile force
  • 2.5 mm² / solid / > 50 N
  • 0.2 mm² / solid / > 10 N
  • 0.2 mm² / flexible / > 10 N
  • 2.5 mm² / flexible / > 50 N
• Pull-out test
  • IEC 60999-1:1999-11
  • Test passed

Standards and Regulations

• Connection in acc. with standard
  • CSA
  • EN-VDE
• Flammability rating according to UL 94
  • V2

Termination and connection method

• Test for conductor damage and slackening
  • Test passed
  • IEC 60999-1:1999-11
