Phoenix Contact 0709110

Air clearances and creepage distances

• Application
  • Internal part molded
  • Metal wall 1.0 mm - 2.5 mm
• Clearances and creepage distances
  • Metal wall 1.0 mm - 2.5 mm Internal part molded IEC 60947-1:2007-06 + A1:2010-12
• Minimum clearance - inhomogeneous field (II/2)
  • 5.5 mm
• Minimum clearance - inhomogeneous field (III/2)
  • 5.5 mm
• Minimum clearance - inhomogeneous field (III/3)
  • 5.5 mm
• Minimum creepage distance value (II/2)
  • 5.5 mm
• Minimum creepage distance value (III/2)
  • 5.5 mm
• Minimum creepage distance value (III/3)
  • 5.5 mm
• Specification
  • IEC 60947-1:2007-06 + A1:2010-12

Connection capacity, external

• 2 conductors with same cross section, flexible
  • 0.5 mm² - 4 mm²
• 2 conductors with same cross section, flexible, with ferrule without plastic sleeve
  • 0.5 mm² - 2.5 mm²
• 2 conductors with same cross section, solid
  • 0.5 mm² - 4 mm²
• 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
  • 0.5 mm² - 6 mm²
• Conductor cross section flexible
  • 0.5 mm² - 10 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve
  • 0.5 mm² - 10 mm²
• Conductor cross section, flexible, with ferrule, with plastic sleeve
  • 0.5 mm² - 10 mm²
• Conductor cross section solid
  • 0.5 mm² - 16 mm²
• Connection direction of the conductor to plug-in direction
  • 0 °
• Connection method
  • Screw connection with tension sleeve
• Internal cylindrical gage
  • B6
• Stripping length
  • 11 mm
• Torque
  • 1.5 Nm - 1.8 Nm

Connection capacity, internal

• Connection direction of the conductor to plug-in direction
  • 0 °
• Connection method
  • Solder connection

Dimensions for the product

• Height [ h ]
  • 31 mm
• Length [ l ]
  • 42.8 mm
• Pitch
  • 10.1 mm
• Width [ w ]
  • 10.1 mm

Electrical parameters

• Nominal current
  • 57 A
• Nom. voltage
  • 400 V (With metal panels of 1 mm - 2.5 mm)
• Rated surge voltage (II/2)
  • 6 kV
• Rated surge voltage (III/2)
  • 6 kV
• Rated surge voltage (III/3)
  • 6 kV
• Rated voltage
  • 400 V
• Rated voltage (II/2)
  • 1000 V
• Rated voltage (III/2)
  • 500 V

Electrical tests

• Conductor cross section
  • 10 mm²
• Rated current
  • 57 A
• Rated surge voltage (III/2)
  • 6 kV
• Rated voltage (III/2)
  • 500 V

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

General product information

• Note
  • The cable entry funnel is not touch-proof. Never connect or disconnect the terminal when it is energized. Take appropriate steps to ensure touch proofness.
  • To maintain the nominal voltage, cast the terminals on the inside.
• Type of note
  • Notes on safety
  • Note on application

Item properties

• Brief article description

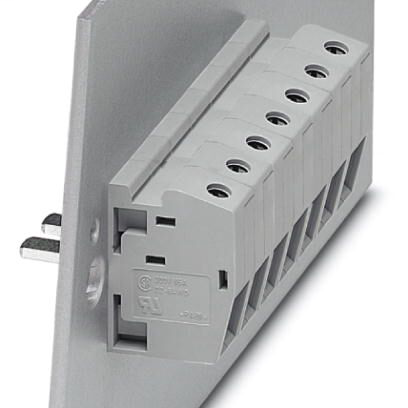

  • Panel feed-through terminal block
• Connection method
  • Screw connection with tension sleeve
• Number of connections
  • 2
• Number of positions
  • 1
• Number of potentials
  • 1
• Pitch
  • 10.1 mm
• Range of articles
  • HDFK 10-VP

Material data - contact

• Contact material
  • Cu alloy
• Note
  • WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
• Surface characteristics
  • tin-plated

Material data - housing

• CTI according to IEC 60112
  • 600
• Flammability rating according to UL 94
  • V0
• Glow wire flammability index GWFI according to EN 60695-2-12
  • 850
• Glow wire ignition temperature GWIT according to EN 60695-2-13
  • 775
• Housing color
  • gray (7042)
• Insulating material
  • PA
• Insulating material group
  • I
• Temperature for the ball pressure test according to EN 60695-10-2
  • 125 °C

Packaging information

• Denomination packing units
  • Pcs.
• Pieces per package
  • 50

Standards and Regulations

• Connection in acc. with standard
  • IEC 60947-7-1
  • CSA
• Flammability rating according to UL 94
  • V0
