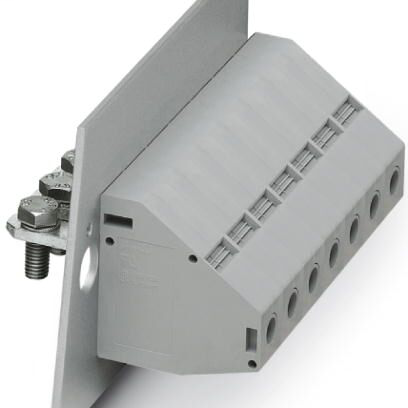

Phoenix Contact 0708797

Air clearances and creepage distances

• Minimum clearance - inhomogeneous field (III/3)
  • 8 mm
• Minimum creepage distance value (III/3)
  • 8 mm

Connection capacity, external

• 2 conductors with same cross section, flexible
  • 10 mm² - 16 mm²
• 2 conductors with same cross section, flexible, with ferrule without plastic sleeve
  • 6 mm² - 16 mm²
• 2 conductors with same cross section, solid
  • 6 mm² - 16 mm²
• 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
  • 6 mm² - 10 mm²
• Conductor cross section flexible
  • 16 mm² - 50 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve
  • 10 mm² - 50 mm²
• Conductor cross section, flexible, with ferrule, with plastic sleeve
  • 10 mm² - 50 mm²
• Conductor cross section solid
  • 16 mm² - 50 mm²
• Connection direction of the conductor to plug-in direction
  • -90 °
• Connection method
  • Screw connection with tension sleeve
• Internal cylindrical gage
  • B10
• Stripping length
  • 24 mm
• Torque
  • 6 Nm - 8 Nm

Connection capacity, internal

• Cable lug connection according to standard
  • M8 12 Nm 15 Nm
• Connection direction of the conductor to plug-in direction
  • 0 °
• Connection method
  • Cable lug connection

Dimensions for the product

• Pitch
  • 18.8 mm
• Width [ w ]
  • 18.8 mm

Electrical parameters

• Nominal current
  • 150 A
• Nom. voltage
  • 690 V
• Rated surge voltage (III/3)
  • 8 kV
• Rated voltage
  • 690 V

Electrical tests

• Conductor cross section
  • 50 mm²
• Rated current
  • 150 A

Environmental Product Compliance

• China RoHS
  • No hazardous substances above threshold values
  • Environmentally friendly use period: unlimited = EFUP-e

General product information

• Note
  • The cable entry funnel is not touch-proof. Never connect or disconnect the terminal when it is energized. Take appropriate steps to ensure touch proofness.
  • To maintain the nominal voltage, align the cable lugs straight and centered, and cast the terminals on the inside.
• Type of note
  • Note on application
  • Notes on safety

Item properties

• Brief article description
  • Panel feed-through terminal block
• Connection method
  • Screw connection with tension sleeve
• Number of connections
  • 2
• Number of positions
  • 1
• Number of potentials
  • 1
• Pitch
  • 18.8 mm
• Range of articles
  • HDFKV 50-VP

Material data - contact

• Contact material
  • Cu alloy
• Note
  • WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
• Surface characteristics
  • tin-plated

Material data - housing

• CTI according to IEC 60112
  • 600
• Flammability rating according to UL 94
  • V0
• Glow wire flammability index GWFI according to EN 60695-2-12
  • 850
• Glow wire ignition temperature GWIT according to EN 60695-2-13
  • 775
• Housing color
  • green-yellow (6021 / 1018)
• Insulating material
  • PA
• Insulating material group
  • I
• Temperature for the ball pressure test according to EN 60695-10-2
  • 125 °C

Packaging information

• Denomination packing units
  • Pcs.
• Pieces per package
  • 10

Standards and Regulations

• Connection in acc. with standard
  • CSA
• Flammability rating according to UL 94
  • V0
