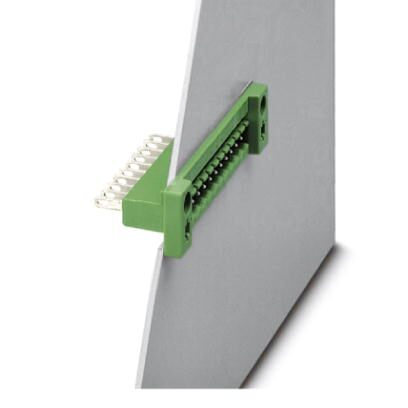

Phoenix Contact 0707235
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Feed-through header, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 16, pitch: 5 mm, connection method: Solder/Slip-on connection, color: green, contact surface: Tin, mounting: Direct mounting, solder pin [P]: 9.3 mm, accessory order no. 5030172 can only be used in conjunction with MSTB 2,5/...ST and MSTBT 2,5/...ST.Feed-through header - DFK-MSTB 2,5/16-G - 0707235
Phoenix Contact 0707235 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Air clearances and creepage distances
- Clearances and creepage distances
- IEC 60664-1:2007-04
- Minimum clearance - inhomogeneous field (II/2)
- 3 mm
- Minimum clearance - inhomogeneous field (III/2)
- 3 mm
- Minimum clearance - inhomogeneous field (III/3)
- 3 mm
- Minimum creepage distance value (II/2)
- 3.2 mm
- Minimum creepage distance value (III/2)
- 3 mm
- Minimum creepage distance value (III/3)
- 4 mm
- Specification
- IEC 60664-1:2007-04
Ambient conditions
- Ambient temperature (assembly)
- -5 °C - 100 °C
- Ambient temperature (operation)
- -40 °C - 100 °C (dependent on the derating curve)
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
Connection capacity
- Conductor cross section AWG / kcmil
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2.5 mm²
- Connection method
- Solder/Slip-on connection
- pluggable
- Yes
Dimensions for the product
- Dimensions of slip-on connection
- 2,8 x 0,8 mm
- Height [ h ]
- 29.5 mm
- Height (without solder pin)
- 20.2 mm
- Length [ l ]
- 17.5 mm
- Pitch
- 5 mm
- Solder pin [P]
- 9.3 mm
- Width [ w ]
- 100 mm
Electrical parameters
- Nominal current
- 12 A
- Nom. voltage
- 320 V
- Rated surge voltage (II/2)
- 4 kV
- Rated surge voltage (III/2)
- 4 kV
- Rated surge voltage (III/3)
- 4 kV
- Rated voltage
- 320 V
- Rated voltage (II/2)
- 630 V
- Rated voltage (III/2)
- 320 V
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Item properties
- Brief article description
- Feed-through header
- Connection method
- Solder/Slip-on connection
- Locking
- without
- Mounting type
- Direct mounting
- Number of connections
- 16
- Number of levels
- 1
- Number of positions
- 16
- Number of potentials
- 16
- Pitch
- 5 mm
- Plug-in system
- CLASSIC COMBICON
- Range of articles
- DFK-MSTB 2,5/..-G
- Type of contact
- Male connector
Material data - contact
- Contact material
- Cu alloy
- Metal surface contact area (middle layer)
- Nickel (2 - 3 µm Ni),
- Metal surface contact area (top layer)
- Tin (5 - 7 µm Sn)
- Metal surface soldering area (middle layer)
- Nickel (2 - 3 µm Ni)
- Metal surface soldering area (top layer)
- Tin (5 - 7 µm Sn)
- Note
- WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
- Surface characteristics
- Tin-plated
Material data - housing
- CTI according to IEC 60112
- 600
- Flammability rating according to UL 94
- V2
- Housing color
- green (6021)
- Insulating material
- PA
- Insulating material group
- I
Packaging information
- Denomination packing units
- Pcs.
- Pieces per package
- 50
- Type of packaging
- packed in cardboard
Standards and Regulations
- Connection in acc. with standard
- CSA
- EN-VDE
- Flammability rating according to UL 94
- V2
