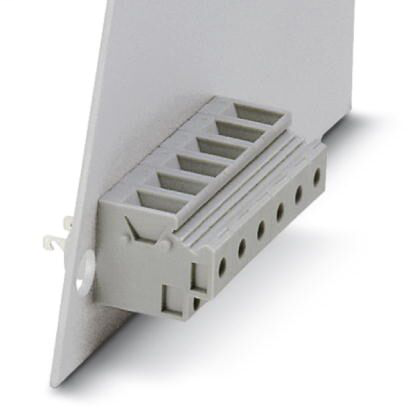

Phoenix Contact 0706605

Connection capacity, external

• 2 conductors with same cross section, flexible
  • 0.2 mm² - 2.5 mm²
• 2 conductors with same cross section, flexible, with ferrule without plastic sleeve
  • 0.25 mm² - 1.5 mm²
• 2 conductors with same cross section, solid
  • 0.2 mm² - 1.5 mm²
• 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
  • 0.5 mm² - 2.5 mm²
• Conductor cross section flexible
  • 0.2 mm² - 4 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve
  • 0.25 mm² - 4 mm²
• Conductor cross section, flexible, with ferrule, with plastic sleeve
  • 0.25 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 6 mm²
• Connection direction of the conductor to plug-in direction
  • 90 °
• Connection method
  • Screw connection with tension sleeve
• Internal cylindrical gage
  • A4
• Stripping length
  • 14 mm
• Torque
  • 0.6 Nm - 0.8 Nm

Connection capacity, internal

• Conductor cross section flexible
  • 0.2 mm² - 1.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 1.5 mm²
• Connection direction of the conductor to plug-in direction
  • 0 °
• Connection method
  • Solder/Slip-on connection
• Dimensions of slip-on connection
  • 2.8 x 0.8 mm
• Internal cylindrical gage
  • A4

Dimensions for the product

• Height [ h ]
  • 20 mm
• Length [ l ]
  • 38.6 mm
• Pitch
  • 9.5 mm
• Width [ w ]
  • 9.5 mm

Electrical parameters

• Nominal current
  • 17.5 A
• Nom. voltage
  • 690 V
• Rated surge voltage (III/3)
  • 8 kV
• Rated voltage
  • 690 V

Electrical tests

• Conductor cross section
  • 4 mm²
• Rated current
  • 17.5 A

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Item properties

• Brief article description
  • Panel feed-through terminal block
• Connection method
  • Screw connection with tension sleeve
• Number of connections
  • 2
• Number of positions
  • 1
• Number of potentials
  • 1
• Pitch
  • 9.5 mm
• Range of articles
  • DFK 5-9,5

Material data - contact

• Contact material
  • Cu alloy
• Note
  • WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
• Surface characteristics
  • tin-plated

Material data - housing

• CTI according to IEC 60112
  • 600
• Flammability rating according to UL 94
  • V2
• Housing color
  • gray (7042)
• Insulating material
  • PA
• Insulating material group
  • I

Packaging information

• Denomination packing units
  • Pcs.
• Pieces per package
  • 50

Standards and Regulations

• Connection in acc. with standard
  • CSA
  • IEC 60947-7-1
• Flammability rating according to UL 94
  • V2
