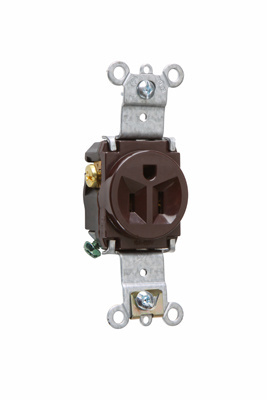

Pass & Seymour 5261
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy-Duty Spec Grade Single Receptacle Back and Side-Wire 15A 125VHeavy Duty Spec Grade Single Receptacles, Back and Side Wire, 15A, 125V, Brown
Pass & Seymour 5261 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amperage
- 15 A
- Application Sector
- Commercial
- Color
- Brown
- Connection
- Back and side wire
- Country of Origin
- Mexico
- Dielectric Strength
- Withstands 2000V minimum
- Environmental Conditions
- Flammability: UL94 V2
- NEMA Rating
- 5-15R
- Number of Poles
- Double Pole
- Number of Wires
- 3.0
- Product Line
- Pass & Seymour
- Special Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. One-piece brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
- Standard
- UL498, CSA C22.2 No. 42
- Temperature Rating
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- Voltage
- 125.0 V
- Wire Size
- #14 - #10
