Description

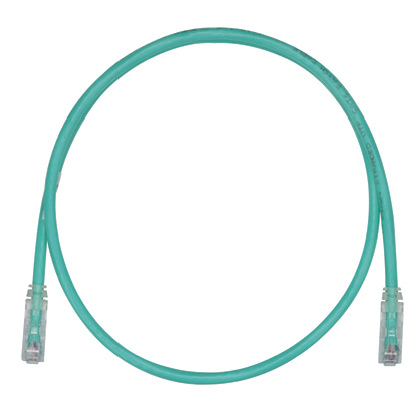

The TX6™ PLUS Cat 6 UTP Patch Cord is a 1-Meter, Green cord constructed of 24 AWG, unshielded, twisted pair, stranded, LSZH (60332-1) cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.Cat 6 24 AWG UTP Copper Patch Cord, 1 m, Green
Panduit UTPSPL1MGRY is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- California Pro65 Cancer
- No
- Country of Origin 2Digit
- CN,RO,MX
- EAN
- 00074983173495
- GTIN Carton
- 50074983173490
- GTIN Package
- 00074983173495
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 10
- Min. Order UOM
- Piece
- Pallet Quantity
- 2,240
- Pallet Volume
- 38.139784
- Pallet Weight
- 390.2080
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.1703
- Standard Carton Weight Pounds
- 1.7420
- Standard Package Volume Ft3
- 0.0170
- Standard Package Weight Pounds
- 0.1742
- Std Carton Height In
- 4.1
- Std Carton Height MM
- 104.14
- Std Carton Length In
- 11.08
- Std Carton Length MM
- 281.432
- Std Carton Width In
- 9.14
- Std Carton Width MM
- 232.156
- Std Ctn Qty
- 10
- Std Package Height In
- 1.5
- Std Package Height MM
- 38.1
- Std Package Length In
- 11
- Std Package Length MM
- 279.4
- Std Package Width In
- 9
- Std Package Width MM
- 228.6
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 07498317349
Specifications
- Application
- (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP)
- Boot Color
- Clear
- Cable Construction
- U/UTP
- Color
- Green
- Conductor Gauge (AWG)
- 24
- Conductor Gauge (kcmil)
- 0.4
- Conductor Type
- Stranded
- Connector 1 Type
- Modular Plug
- Connector 2 Type
- Modular Plug
- Flammability Rating
- LSZH
- IEC Variant
- 60603-7
- Jacket Material
- LSZH Material
- Maximum Operating Temperature (°C)
- 60
- Maximum Storage Temperature (°C)
- 70
- Minimum Operating Temperature (°C)
- -10
- Minimum Storage Temperature (°C)
- -40
- Nominal Cable Outside Diameter (mm)
- 6
- Overall Length (m)
- 1
- Patch Cord Type
- Unshielded
- Performance Level
- Category 6
- Plug Housing Material
- Polycarbonate
- Plug Type
- 8 Position
- PoE Compatibility
- IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++)
- Product Segment
- EDI-ENT
- Product Type
- Patch Cord
- RapidID™ Enabled
- Yes
- Standards Met
- Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
- Sub Brand
- Pan-Net®
- Wiring Scheme
- T568B
