Description

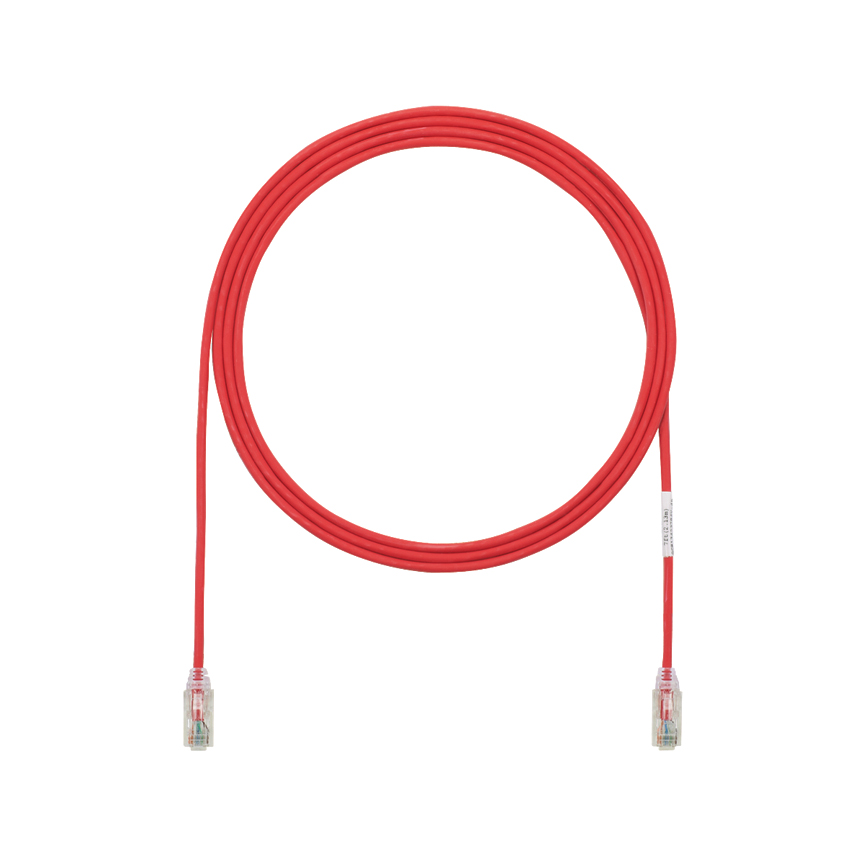

The TX6-28™ Cat 6 UTP Patch Cord is a 48-Foot, 0.150-inch (3.8mm) diameter, Red cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.CU Patch Crd,Cat 6,SD,48ft,RD
Panduit UTP28SP48RD is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- California Pro65 Cancer
- No
- Country of Origin 2Digit
- RO,CN,MX
- EAN
- 00074983360079
- GTIN Carton
- 50074983360074
- GTIN Package
- 00074983360079
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 10
- Min. Order UOM
- Piece
- Pallet Quantity
- 880
- Pallet Volume
- 41.307292
- Pallet Weight
- 519.2000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.4694
- Standard Carton Weight Pounds
- 5.9000
- Standard Package Volume Ft3
- 0.0469
- Standard Package Weight Pounds
- 0.5900
- Std Carton Height In
- 4.5
- Std Carton Height MM
- 114.3
- Std Carton Length In
- 17.5
- Std Carton Length MM
- 444.5
- Std Carton Width In
- 10.3
- Std Carton Width MM
- 261.62
- Std Ctn Qty
- 10
- Std Package Height In
- 1.5
- Std Package Height MM
- 38.1
- Std Package Length In
- 9
- Std Package Length MM
- 228.6
- Std Package Width In
- 11
- Std Package Width MM
- 279.4
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 07498336007
Specifications
- Application
- (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (3) Digital video and broadband/baseband analog video, Voice/data systems (4) Voice over Internet Protocol (VoIP)
- Boot Color
- Clear
- Cable Construction
- U/UTP
- Color
- Red
- Conductor Gauge (AWG)
- 28
- Conductor Gauge (kcmil)
- 0.2
- Conductor Type
- Stranded
- Connector 1 Type
- Modular Plug
- Connector 2 Type
- Modular Plug
- Flammability Rating
- Dual Rated (CM/LSZH)
- IEC Variant
- 60603-7
- Jacket Material
- LSZH Material
- Maximum Operating Temperature (°F)
- 167
- Maximum Storage Temperature (°F)
- 158
- Minimum Operating Temperature (°F)
- 14
- Minimum Storage Temperature (°F)
- -40
- Nominal Cable Outside Diameter (In.)
- 0.15
- Overall Length (ft.)
- 48
- Patch Cord Type
- Unshielded
- Performance Level
- Category 6
- Plug Housing Material
- Polycarbonate
- Plug Type
- 8 Position
- PoE Compatibility
- PoE
- Product Segment
- EDI-ENT
- Product Type
- Patch Cord
- RapidID™ Enabled
- Yes
- Standards Met
- Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz, Meets ANSI/TIA-1096-A (formerly FCC Part 68), Meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant
- Sub Brand
- Pan-Net®
- Wiring Scheme
- T568B
