Panduit TM3S10-M69
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

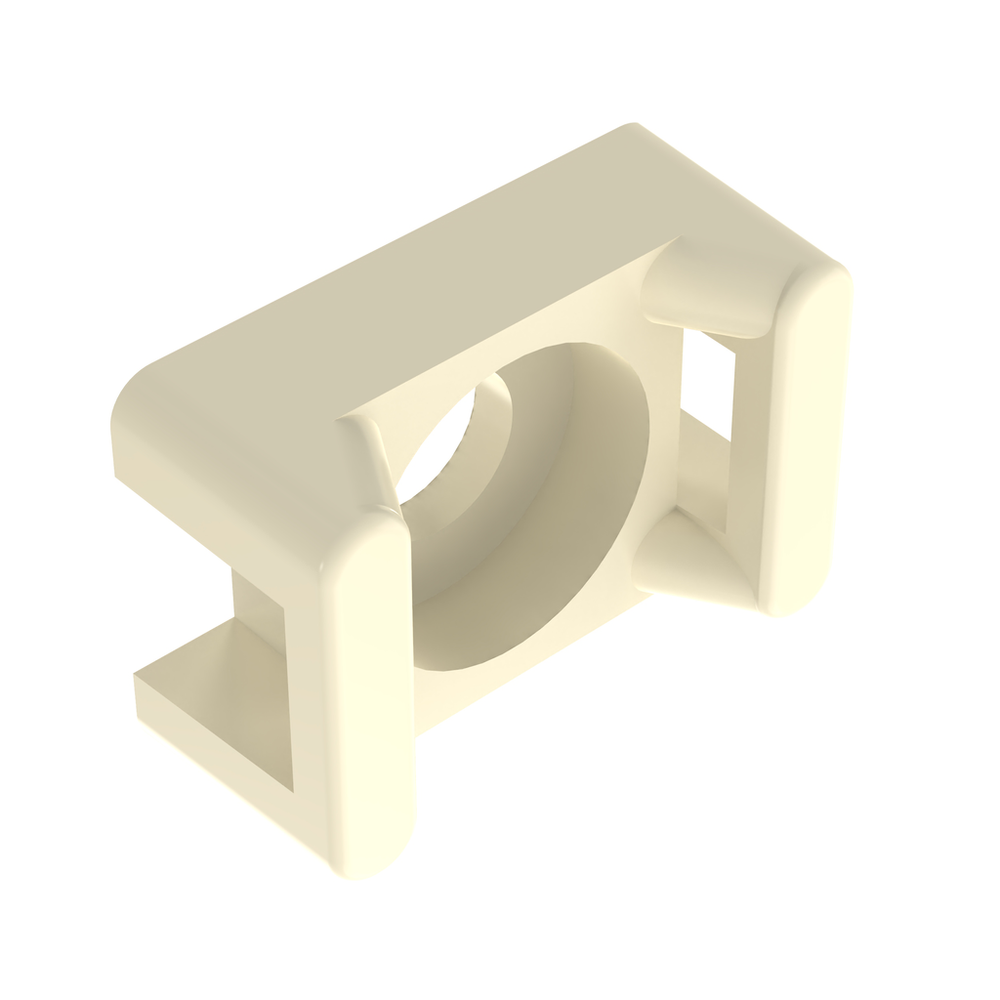

Panduit TM3S10-M69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #10 (M5) screw. For indoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Flame Retardant Nylon 6.6. They are 0.61" (15.5 mm) wide, are ivory in color and come in packages of 1000.TM3S10-M69 Cable Tie Mount, Ivory, V-0 PA 6.6, 0.86x0.61", #10 Screw, PK1000
Panduit TM3S10-M69 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- US
- EAN
- 00074983518357
- GTIN Carton
- 50074983518352
- GTIN Package
- 00074983518357
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1,000
- Min. Order UOM
- Piece
- Pallet Quantity
- 180,000
- Pallet Volume
- 47.744271
- Pallet Weight
- 720.0000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 1.3262
- Standard Carton Weight Pounds
- 20.0000
- Standard Package Volume Ft3
- 0.2652
- Standard Package Weight Pounds
- 4.0000
- Std Carton Height In
- 10.91
- Std Carton Height MM
- 277.114
- Std Carton Length In
- 14.46
- Std Carton Length MM
- 367.284
- Std Carton Width In
- 14.46
- Std Carton Width MM
- 367.284
- Std Ctn Qty
- 5000
- Std Package Height In
- 14
- Std Package Height MM
- 355.6
- Std Package Length In
- 14
- Std Package Length MM
- 355.6
- Std Package Width In
- 1.5
- Std Package Width MM
- 38.1
- Std. Pkg. Qty.
- 1000
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498351835
Specifications
- Application
- Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
- Color
- Ivory
- Environment
- Indoor
- For Use With
- Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties
- Material
- Flame Retardant Nylon 6.6
- Maximum Operating Temperature (°C)
- 100
- Maximum Operating Temperature (°F)
- 212
- Minimum Operating Temperature (°C)
- -60
- Minimum Operating Temperature (°F)
- -76
- Mounting Hole Thread Size
- #10
- Mount Method
- Screw
- Overall Height (In.)
- 0.373
- Overall Height (mm)
- 9.4
- Overall Length (In.)
- 0.86
- Overall Length (mm)
- 21.9
- Overall Width (In.)
- 0.61
- Overall Width (mm)
- 50.3
- Product Segment
- IEI
- Product Type
- Cable Tie Mount
- Resistance Properties
- Flame Retardant
- Standards Met
- CE Compliant, UL Recognized:E136577, RoHS Compliant
