Panduit ST35-075-66BR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

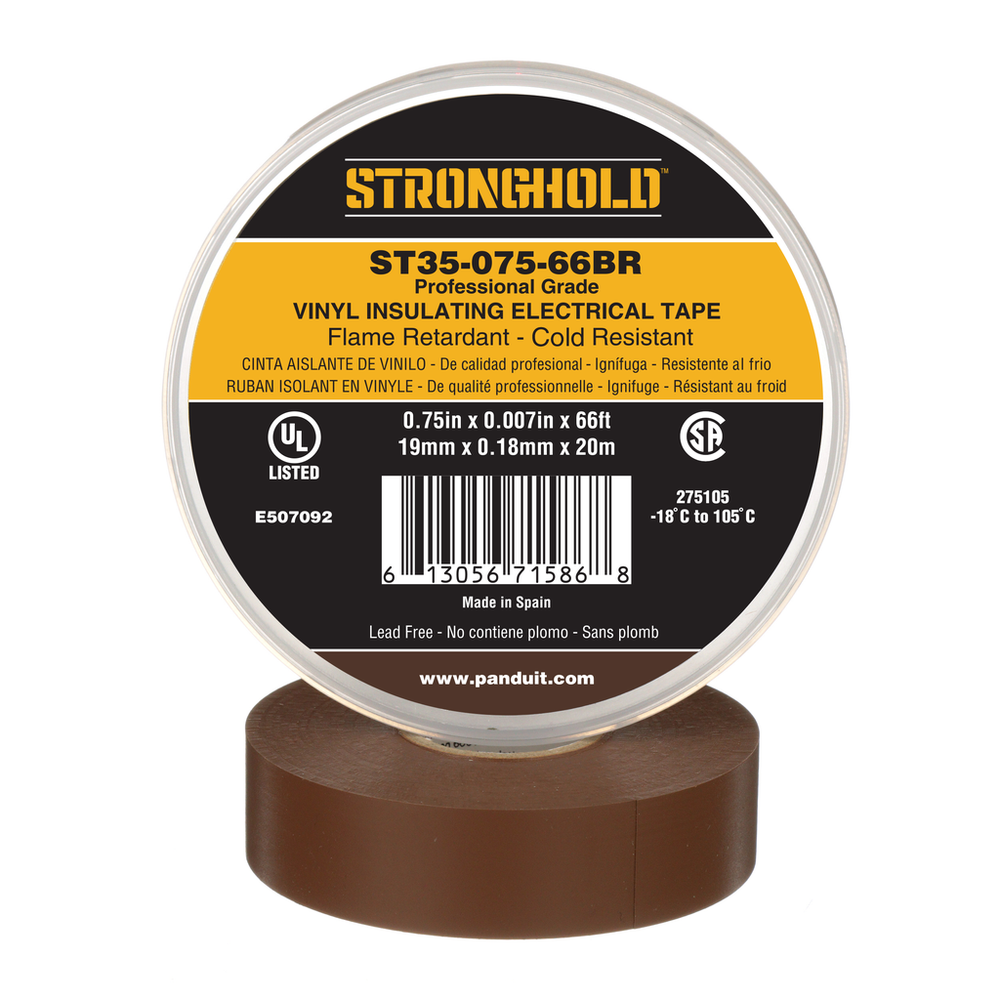

StrongHold ST35-075-66BR Professional Grade PVC Electrical Tape is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. It has excellent elasticity and insulating properties and it is .75" x 66' x .007" in size. It is brown in color and comes in an individual plastic puck. Suitable as primary insulation when used for splicing up 600 Volts or 80∘C (176∘F) and can be used as protective jacketing.StrongHold™ ST35-075-66BR Electrical Tape, Brown, PVC, Prof Grade, 0.75", 0.007"
Panduit ST35-075-66BR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- California Pro65 Cancer
- Y
- Country of Origin 2Digit
- ES
- EAN
- 00613056715868
- GTIN Carton
- 50613056715863
- GTIN Package
- 00613056715868
- Hazardous Material Flag
- N
- Mercury Content Indicator
- N
- Min Order Qty
- 20
- Min. Order UOM
- Roll
- Pallet Quantity
- 3,200
- Pallet Volume
- 32.423301
- Pallet Weight
- 883.2000
- REACH Status
- N
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.2026
- Standard Carton Weight Pounds
- 5.5200
- Standard Package Volume Ft3
- 0.0101
- Standard Package Weight Pounds
- 0.2760
- Std Ctn Qty
- 20
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Roll
- UOM EA PK
- EA
- UPC
- 61305671586
Specifications
- Adhesion to Backing (N/cm)
- 2.2
- Adhesion to Backing (oz/in)
- 20.1
- Adhesion to Steel (N/cm)
- 2.2
- Adhesion to Steel (oz/in)
- 20.1
- Adhesive Backing Material
- Rubber
- Application
- Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
- Color
- Brown
- Compliance Certifications
- UL Listed/CSA Certified
- Dielectric Strength Standard (kV)
- 8
- Dielectric Strength Wet (90%) (kV)
- 7.2
- Durability (yr)
- 5
- Elongation at Break (%)
- 260
- Environment
- Indoor/Outdoor
- Flagging (mm)
- 0
- Flammability Rating
- UL 510 Flame Retardant
- Insulation Resistance (MΩ)
- 1.E+06
- Material
- Polyvinyl Chloride (PVC)
- Maximum Operating Temperature (°C)
- 105
- Maximum Operating Temperature (°F)
- 221
- Minimum Operating Temperature (°C)
- -18
- Minimum Operating Temperature (°F)
- 0
- Overall Length (ft.)
- 66
- Overall Length (m)
- 20
- Overall Thickness (In.)
- 0.007
- Overall Thickness (mm)
- 0.18
- Overall Width (In.)
- 0.75
- Overall Width (mm)
- 19
- Product Segment
- IEI
- Product Type
- Professional Grade PVC Electrical Tape
- Standards Met
- Meets ASTM D-3005, Type 1; EN 60454-3-1, Type 11; UL 510 CSA C 22.2 No 197; Meets 2000/53/EC and RoHS 2011/65/EU directives
- Sub Brand
- StrongHold™
- Tape Style
- Professional Grade
- Tensile at Break (kg/mm)
- 0.31
- Tensile at Break (N/cm)
- 30
