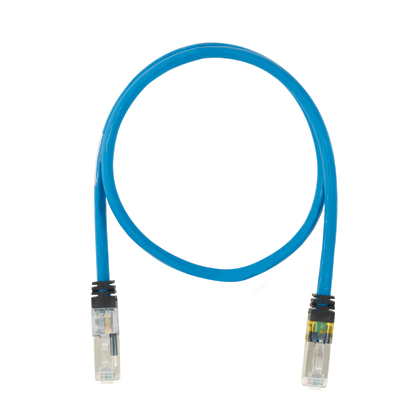

Panduit PVQ-ES6X3MWH
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
10Gig™ STP Enhanced Interconnect Patch Cord for use with PanView iQ™ Patch Panel, dual rated, 3.0 m, White.PViQ,PC,STP,Cat6A,DualRating,WH,3M
Panduit PVQ-ES6X3MWH is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- CR
- EAN
- 00074983206933
- GTIN Carton
- 50074983206938
- GTIN Package
- 00074983206933
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 990
- Pallet Volume
- 53.000521
- Pallet Weight
- 486.0900
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.5354
- Standard Carton Weight Pounds
- 4.9100
- Standard Package Volume Ft3
- 0.0535
- Standard Package Weight Pounds
- 0.4910
- Std Carton Height In
- 4.4
- Std Carton Height MM
- 111.76
- Std Carton Length In
- 14.5
- Std Carton Length MM
- 368.3
- Std Carton Width In
- 14.5
- Std Carton Width MM
- 368.3
- Std Ctn Qty
- 10
- Std Package Height In
- 1.5
- Std Package Height MM
- 38.1
- Std Package Length In
- 14
- Std Package Length MM
- 355.6
- Std Package Width In
- 17
- Std Package Width MM
- 431.8
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 07498320693
Specifications
- Application
- Provide continuous real-time patch field monitoring and visibility of physical infrastructure connectivity for enhanced system reliability and security and capacity management
- Boot Color
- Black
- Cable Construction
- U/UTP
- Color
- White
- Conductor Gauge (AWG)
- 26
- Conductor Gauge (kcmil)
- 0.2
- Conductor Type
- Stranded
- Connector 1 Type
- Patch Panel Plug
- Connector 2 Type
- Modular Plug
- Flammability Rating
- Dual Rated (CM/LSZH)
- IEC Variant
- 60603-7
- Jacket Material
- LSZH Material
- Maximum Operating Temperature (°C)
- 60
- Maximum Storage Temperature (°C)
- 70
- Minimum Operating Temperature (°C)
- -10
- Minimum Storage Temperature (°C)
- -40
- Nominal Cable Outside Diameter (mm)
- 6.5
- Overall Length (m)
- 3
- Patch Cord Type
- Shielded
- Performance Level
- Category 6A
- Plug Housing Material
- Polycarbonate
- Plug Type
- 8 Position
- PoE Compatibility
- POE
- Product Segment
- EDI-ENT
- Product Type
- Patch Cord
- Standards Met
- Certified channel performance in a 4-connector configuration up to 100 meters and exceeds the requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA standards for supporting 10GBASE-T transmission over twisted-pair cabling systems; attenuation de-rating factor is 1.5; Certified component performance to the ANSI/TIA-568-C.2 component standard for supporting 10GBASE-T transmission over twisted-pair cabling systems; Meets ANSI/TIA/EIA-1096-A; Meets IEC 60603-7; Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications; UL 1863; RoHS Compliant
- Sub Brand
- PanView iQ™
- Wiring Scheme
- T568B
