Description

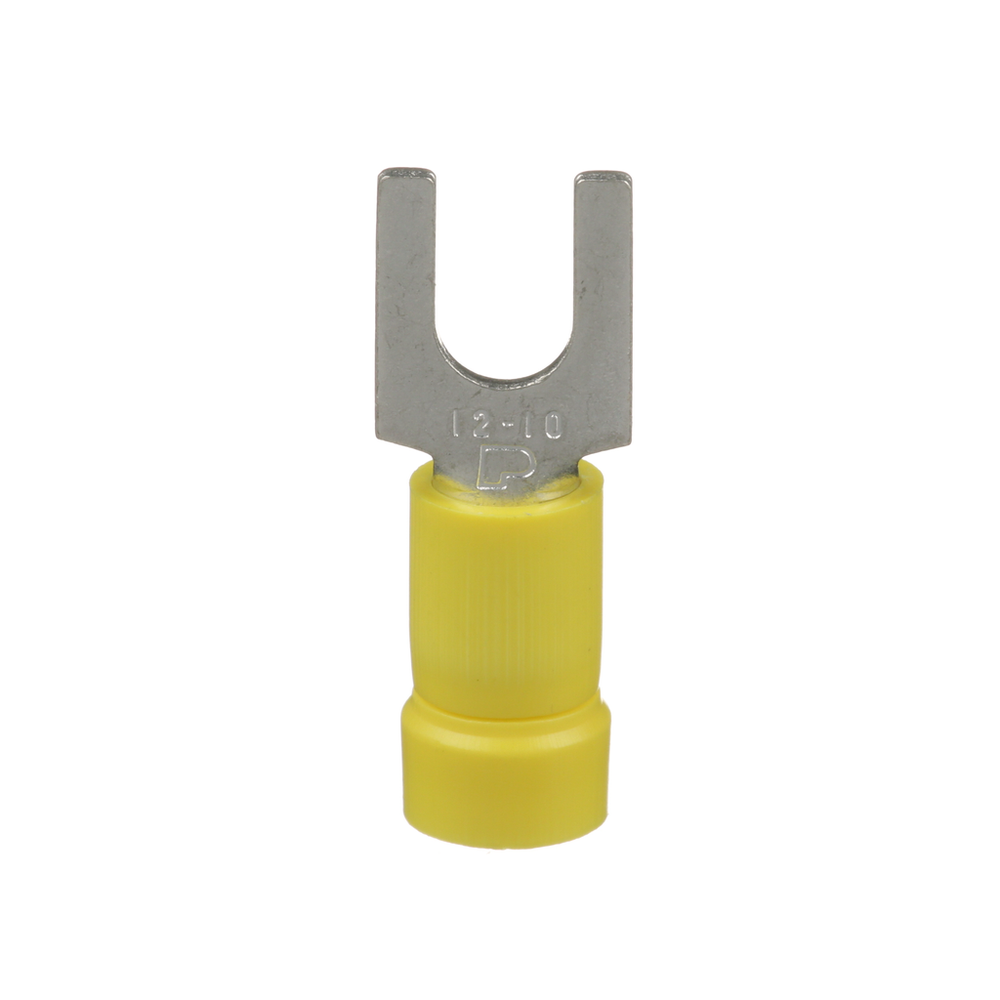

Fork Terminal, vinyl insulated, funnel entry, 14 – 10 AWG, #10 stud size, convenience package.Pan-Term® PV10-10F-E Fork Terminal
Panduit PV10-10F-E is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- California Pro65 Cancer
- No
- Country of Origin 2Digit
- MX
- EAN
- 00074983344246
- GTIN Carton
- 50074983344241
- GTIN Package
- 00074983344246
- Hazardous Material Flag
- N
- Lead Content Indicator
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 100
- Min. Order UOM
- Piece
- REACH Status
- False
- Restricted Use of Hazardous Substances
- N
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.0641
- Standard Carton Weight Pounds
- 0.4357
- Standard Package Volume Ft3
- 0.0128
- Standard Package Weight Pounds
- 0.0871
- Std Carton Height In
- 3.45
- Std Carton Height MM
- 87.63
- Std Carton Length In
- 8.1
- Std Carton Length MM
- 205.74
- Std Carton Width In
- 4.4
- Std Carton Width MM
- 111.76
- Std Ctn Qty
- 100
- Std Package Height In
- .7
- Std Package Height MM
- 17.78
- Std Package Length In
- 3.9
- Std Package Length MM
- 99.06
- Std Package Width In
- 2.85
- Std Package Width MM
- 72.39
- Std. Pkg. Qty.
- 20
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498334424
Specifications
- Barrel Length (In.)
- 0.41
- Barrel Length (mm)
- 10.3
- Barrel Type
- Funnel
- Base Material
- Copper
- Color Code
- Yellow
- Finish/Coating
- Tin-Plated
- Flammability Rating
- UL94V-0
- Fork Type
- Standard
- For Use With
- CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
- Insulation Material
- Vinyl
- Insulation Type
- Vinyl
- Maximum Copper Conductor Size (AWG)
- #10
- Maximum Copper Conductor Size (AWG SOL)
- #10
- Maximum Copper Conductor Size (AWG STR)
- #10
- Maximum Operating Temperature (°C)
- 105
- Maximum Operating Temperature (°F)
- 221
- Maximum Voltage (kV)
- 0.6
- Maximum Voltage (V)
- 600
- Maximum Wire Insulation Diameter (In.)
- 0.225
- Maximum Wire Insulation Diameter (mm)
- 5.72
- Maximum Wire Size (AWG)
- #10
- Minimum Copper Conductor Size (AWG)
- #14
- Minimum Copper Conductor Size (AWG SOL)
- #14
- Minimum Copper Conductor Size (AWG STR)
- #14
- Minimum Metric Conductor Size (mm²)
- 2.5
- Minimum Wire Size (AWG)
- #14
- Outer Diameter (In.)
- 0.23
- Outer Diameter (mm)
- 5.7
- Overall Length (In.)
- 1.04
- Overall Length (mm)
- 26.4
- Overall Width (In.)
- 0.37
- Overall Width (mm)
- 9.4
- Packaging Type
- Box
- Product Segment
- IEI
- Product Type
- Fork Terminal
- Seam Type
- Brazed
- Standards Met
- UL Listed 587H E52164; CSA Certified LR31212
- Stud Hole Size (In.)
- #10
- Stud Hole Size (mm)
- 5
- Stud Size
- #10
- Sub Brand
- Pan-Term®
- Tongue Length (In.)
- 0.64
- Tongue Length (mm)
- 16.1
- Tongue Thickness (In.)
- 0.04
- Tongue Thickness (mm)
- 1
- Tongue Width (In.)
- 0.37
- Tongue Width (mm)
- 9.4
- Wire Strip Length (In.)
- 5/16
- Wire Strip Length (mm)
- 7.9
