Panduit PUL6004BU-FE
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

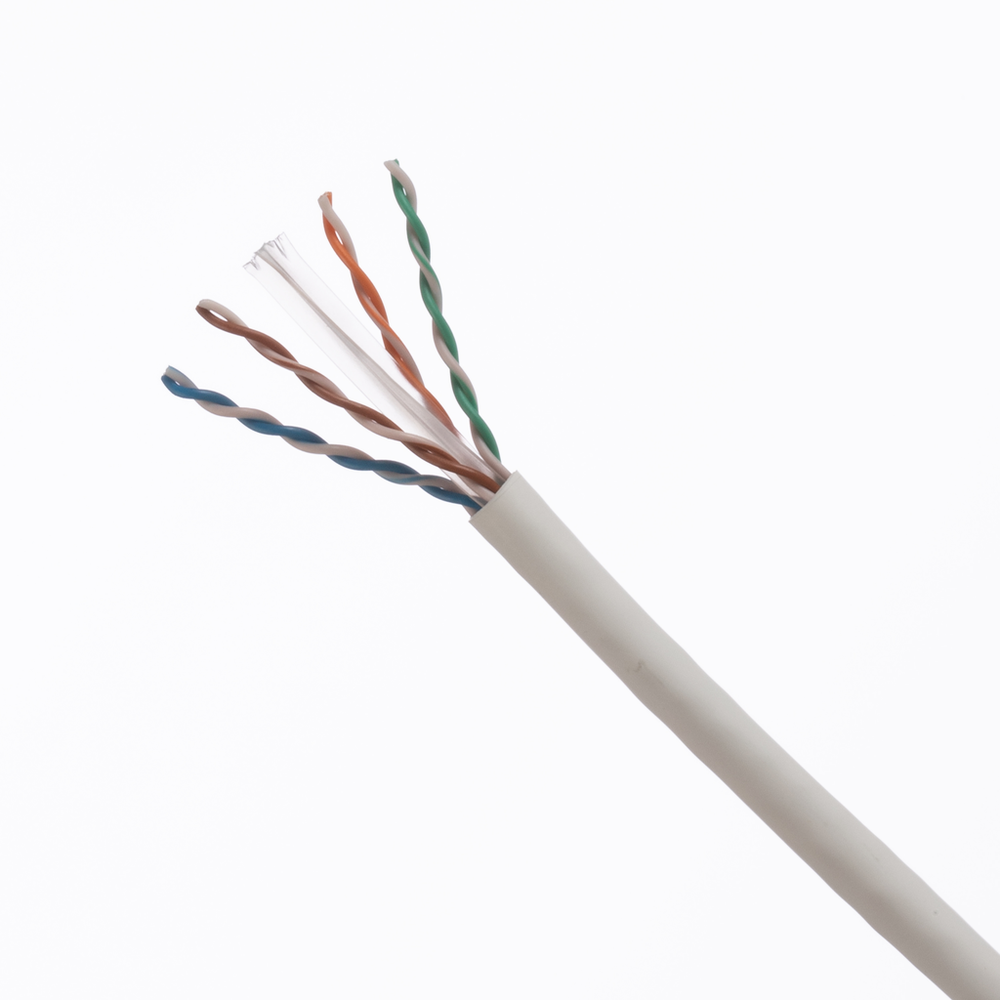

The TX6000™ Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, LSZH (IEC 60332-1, IEC 60332-3-22, EuroClass Dca-s2,d2,a1) cable is supplied 305 meters (1,000 feet) to an easy pay-out carton.Copper Cable, Cat 6, 23 AWG, UTP, LSZH-1, Blue
Panduit PUL6004BU-FE is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- CN
- EAN
- 00074983878451
- GTIN Carton
- 50074983878456
- GTIN Package
- 00074983878451
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 24
- Min. Order UOM
- Roll
- Pallet Quantity
- 24
- Pallet Volume
- 41.685751
- Pallet Weight
- 678.9600
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 41.6858
- Standard Carton Weight Pounds
- 678.9600
- Standard Package Volume Ft3
- 1.7369
- Standard Package Weight Pounds
- 28.2900
- Std Carton Height In
- 52.4
- Std Carton Height MM
- 1330.96
- Std Carton Length In
- 43.3
- Std Carton Length MM
- 1099.82
- Std Carton Width In
- 35.4
- Std Carton Width MM
- 899.16
- Std Ctn Qty
- 24
- Std Package Height In
- 11.2
- Std Package Height MM
- 284.48
- Std Package Length In
- 15.75
- Std Package Length MM
- 400.05
- Std Package Width In
- 15.75
- Std Package Width MM
- 400.05
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Roll
- UOM EA PK
- EA
- UPC
- 07498387845
Specifications
- Acidity Rating
- a1
- Bend Radius (In.)
- 0.89
- Bend Radius (mm)
- 22
- Cable Construction
- U/UTP
- Color
- Blue
- Conductor Gauge (AWG)
- 23
- Conductor Material
- Copper
- Conductor Type
- Solid
- Environment
- Indoor
- EuroClass Flame Rating
- Dca
- EuroClass Rating
- Dca-s2,d2,a1
- Flaming Droplets Rating
- d2
- Flammability Rating
- LSZH (IEC 60332-1,IEC 60332-3)
- Insulation Diameter (In.)
- 0.039
- Insulation Diameter (mm)
- 0.99
- Insulation Material
- HDPE
- Jacket Material
- LSZH
- Maximum Installation Temperature (°C)
- 50
- Maximum Installation Temperature (°F)
- 122
- Maximum Installation Tension (lb)
- 25
- Maximum Installation Tension (N)
- 110
- Maximum Operating Temperature (°C)
- 60
- Maximum Operating Temperature (°F)
- 140
- Maximum Voltage (V)
- 80
- Minimum Installation Temperature (°C)
- 0
- Minimum Installation Temperature (°F)
- 32
- Minimum Operating Temperature (°C)
- -20
- Minimum Operating Temperature (°F)
- -4
- Nominal Cable Outside Diameter (In.)
- 0.224
- Nominal Cable Outside Diameter (mm)
- 5.7
- Note
- Available in Latin America, Asia Pacific and EMEA
- Number of Pairs
- 4
- Overall Length (ft.)
- 1000
- Overall Length (m)
- 305
- Packaging Type
- Easy Payout Carton
- Performance Level
- Category 6
- Product Segment
- DEFAULT
- Product Type
- Copper Cable
- Resistance Properties
- Flame Retardant
- Smoke Rating
- s2
- Standards Met
- Exceeds ISO 11801 Class E and ANSI/TIA-568.2-D Category 6 with Channel Headroom Guarantee, IEC 61156-5, IEC 60332-1, IEC 60332-3-22, IEC 60754, IEC 61034, EN 50575: Euroclass Dca-s2-d2-a1, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, RoHS Compliant.
- Sub Brand
- Pan-Net®
