Panduit PSMDA7004BL-LED
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

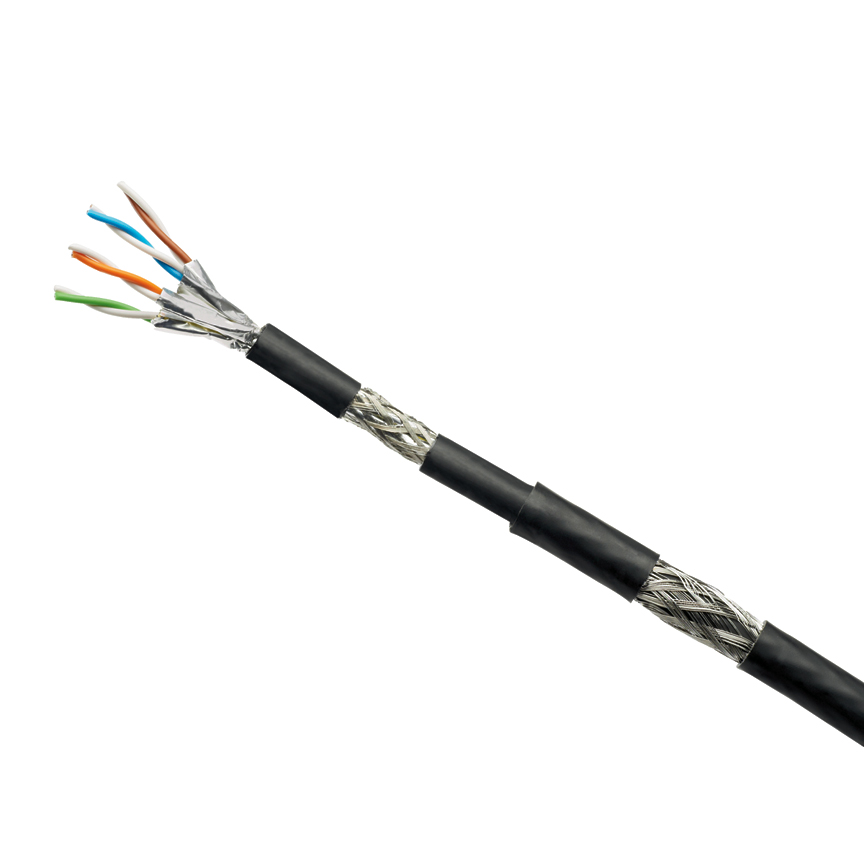

IndustrialNet™ Copper Cable, Industrial Ethernet, Harsh Environment, Marine Grade, Category 7, 4-pair, 22 AWG stranded, S/FTP, LSZH, Oil and fuel resistant, UV and MUD resistant, SHF2 compliant, HDPE jacket protected by stainless steel armor and secondary jacket, Black, DNV/GL and ABS certified, 1640ft/500m reelIndustrialNetTM Copper Cable, Cat 7, 22 AWG, S/FTP, Armored, Black
Panduit PSMDA7004BL-LED is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- DE
- EAN
- 00074983202010
- GTIN Carton
- 50074983202015
- GTIN Package
- 00074983202010
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 20
- Min. Order UOM
- Roll
- Pallet Quantity
- 2
- Pallet Volume
- 17.061880
- Pallet Weight
- 420.0000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 17.0619
- Standard Carton Weight Pounds
- 420.0000
- Standard Package Volume Ft3
- 8.5309
- Standard Package Weight Pounds
- 210.0000
- Std Carton Height In
- 33.2
- Std Carton Height MM
- 843.28
- Std Carton Length In
- 29.8
- Std Carton Length MM
- 756.92
- Std Carton Width In
- 29.8
- Std Carton Width MM
- 756.92
- Std Ctn Qty
- 2
- Std Package Height In
- 16.6
- Std Package Height MM
- 421.64
- Std Package Length In
- 29.8
- Std Package Length MM
- 756.92
- Std Package Width In
- 29.8
- Std Package Width MM
- 756.92
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Roll
- UOM EA PK
- EA
- UPC
- 07498320201
Specifications
- Bend Radius (In.)
- 4.96
- Bend Radius (mm)
- 126
- Cable Construction
- S/FTP
- Color
- Black
- Conductor Gauge (AWG)
- 22
- Conductor Material
- Copper
- Environment
- Marine
- Flammability Rating
- LSZH-3 (IEC 60332-3)
- Insulation Diameter (In.)
- 0.07
- Insulation Diameter (mm)
- 1.8
- Insulation Material
- Polyethylene
- Jacket Material
- High Density Polyethylene
- Maximum Installation Temperature (°C)
- 80
- Maximum Installation Temperature (°F)
- 176
- Maximum Installation Tension (lb)
- 22
- Maximum Installation Tension (N)
- 100
- Maximum Operating Temperature (°C)
- 80
- Maximum Operating Temperature (°F)
- 176
- Minimum Installation Temperature (°C)
- -40
- Minimum Installation Temperature (°F)
- -40
- Minimum Operating Temperature (°C)
- -40
- Minimum Operating Temperature (°F)
- -40
- Nominal Cable Outside Diameter (In.)
- 0.49
- Nominal Cable Outside Diameter (mm)
- 12.6
- Note
- Available in all regions
- Number of Pairs
- 4
- Overall Length (ft.)
- 1.64
- Overall Length (m)
- 500
- Packaging Type
- Reel
- Performance Level
- Category 7
- Product Segment
- DEFAULT
- Product Type
- Copper Cable
- Resistance Properties
- UV Resistant
- Standards Met
- Exceeds the requirements of ISO 11801 Class EA and ANSI/TIA-568-C.2 Category 6A standards; meets or exceeds the component requirement of the IEC 61156-5 Category 7 standard ; Standard Compliance:EN 50288-4-1, ISO/IEC 11801, IEC 61156-5, ANSI/TIA-568-C.2, DNV type approval 6-827.50-2, IEC 60092-359 (SHF2), NEK606, UL 2556 Section 4.2.8.5; PoE Compliance:Meets IEEE 802.3af and IEEE 802.3at for PoE applications; RoHS Compliant
