Description

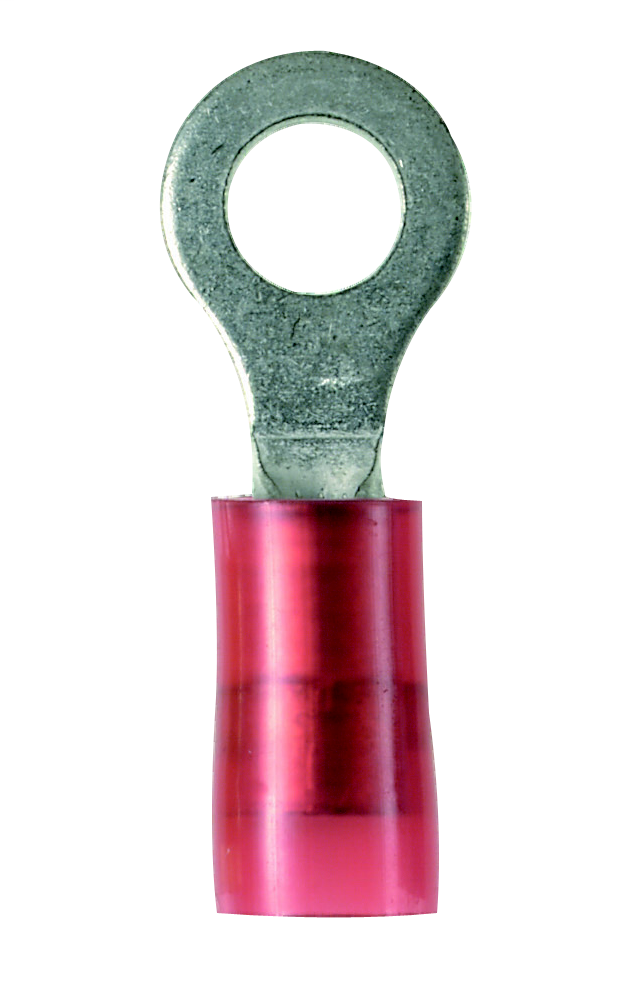

Ring Terminal, 22 – 18 AWG, #6 stud size, nylon insulated, convenience package.Ring Terminal, nylon insulated, 22 - 18 AWG, #6 stud size, Terminal Convenience Package
Panduit PN18-6R-E is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Specifications
- Barrel Configuration
- Standard
- Barrel Type
- Insulation Grip Sleeve
- CA-800/EZ Series Crimp Die
- —
- CA9 Series Crimp Die
- —
- Clearance
- 0.22
- Clearance (mm)
- 5.6
- Country of Origin 2Digit
- MX
- Country of Origin Description
- Mexico
- For Export
- Y
- Gross Volume UOM
- CU
- Hazardous Material Flag
- N
- Insulation
- Nylon
- Lowest Level UOM
- EA
- Master Pack Packaging Description
- BOX
- Master Pack Quantity
- 5
- Max. Ins.
- 0.145
- Max. Ins. (mm)
- 3.75
- Max. Insulation Diameter In. (mm)
- 0.145 (3.75)
- Max. Voltage Rating
- 600 V
- Mercury Content Indicator
- N
- Mil. Std. Part Number
- MS25036-102 (Class 1 & 2)
- MSDS Doc Name
- N
- NMFC Rate
- 70
- Panduit Color Code
- Red
- Part Number Series
- PN
- Parts Available
- N
- Plating Type
- Tinned
- Product Group Assignment
- Terminals
- REACH Status
- FALSE
- Shelf Life
- 0
- Stock
- 0.03
- Stock (mm)
- 0.8
- Stud Hole Size (mm)
- M3.5
- Suggested Index Terms
- Terminal, Connector, Ring, Solderless, Crimp, Military, MS25036-102
- Surface Treatment
- Tinned
- Temperature Rating
- 221 Degrees Fahrenheit (105 Degrees Celsius)
- Unit Volume
- .0067
- Unit Weight
- .055
- UNSPSC
- 39121409
- UOM EA Pk
- PK
- Wire Range (mm²)
- 0.5 - 1.0
- Wire Strip Length (In.)
- 7/32" (.2187)
- Wire Strip Length (mm)
- 5.5
Certifications & Approvals
- ARRA Compliant
- Y
- Buy American Compliant
- Y
- Cadmium Content Indicator
- N
- California Prop 65 Cancer
- N
- California Prop 65 Reproductive Harm
- N
- CE Compliant
- No
- CE Marking
- No
- Certificate of Conformity
- N
- Chromium Content Indicator
- N
- CSA Certified
- C22.2 No. 65
- ECCN Commodity Code
- EAR99
- FIFRA Indicator
- N
- Heavy Metal Content Indicator
- Y
- Lead Content Indicator
- Y
- MSDS Indicator
- N
- Other Heavy Metal Content Indicator
- N
- Ozone Depleting Compounds
- N
- Restricted Use of Hazardous Substances
- N
- RoHS Compliancy Status
- Compliant
- UL Listed
- UL486A-486B
Packaging Details
- GTIN Carton
- 50074983365024
- GTIN Package
- 00074983365029
- Minimum Order Quantity
- 20
- Part Number Full UPC
- 7498336502
- Sell Pack Packaging Description
- BAG
- Sell Pkg Qty 1
- 1
- Ship Pack Packaging Description
- BAG
- Ship Pkg Qty 1
- 1
- Stanard Carton Quantity
- 100
- Standard Carton Weight
- 5.5
- Standard Package Quantity
- 20
- Standard Package Weight
- 1.1000000000000001
- Std Carton Height
- 3.3
- Std Carton Height MM
- 83.82
- Std Carton Length
- 8.1
- Std Carton Length MM
- 205.74
- Std Carton Width
- 4.3
- Std Carton Width MM
- 109.22
- Std Package Height
- .5
- Std Package Height MM
- 12.7
- Std Package Length
- 7.06
- Std Package Length MM
- 179.324
- Std Package Width
- 3.88
- Std Package Width MM
- 98.552
- UNSPSC Carton Description
- CARTON
- UNSPSC Carton UOM
- CT
- UNSPSC Package Description
- PACKAGE
- UNSPSC Package UOM
- PK
- UNSPSC Piece Desription
- EACH
- UNSPSC Piece UOM
- EA
Specifications
- Base Material
- Copper
- Brand Name
- Panduit
- Flammability Rating
- UL 94V-2/HB
- Length (In.)
- 0.79
- Length (mm)
- 20.1
- Order Min Qty Each
- 1
- Order Multiple Quantity Each
- 1
- Packaging Type
- Bag
- Stud Size
- #6
- Sub Brand
- Type PN-R
- Tool
- CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500
- Type
- Insulation Grip Sleeve
- Width (In.)
- 0.25
- Width (mm)
- 6.4
- Wire Range
- 22 - 18 AWG
