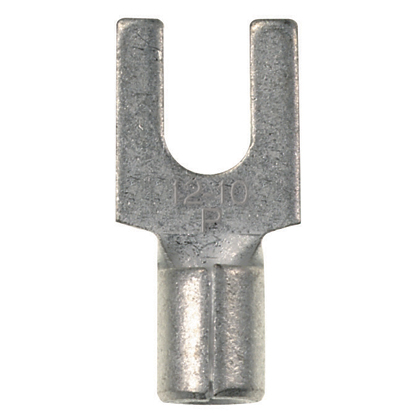

Panduit P14-8F-M
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Fork Terminal, non-insulated, 18- 14 AWG, #8 stud size, bulk package.Pan-Term® P14-8F-M Loose Piece Forks
Panduit P14-8F-M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- MX
- EAN
- 00074983805112
- GTIN Package
- 00074983805112
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1,000
- Min. Order UOM
- Piece
- Pallet Quantity
- 960,000
- Pallet Weight
- 1,920.0000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 0.4190
- Standard Package Weight Pounds
- 2.0000
- Std Package Height In
- 3.45
- Std Package Height MM
- 87.63
- Std Package Length In
- 5.1
- Std Package Length MM
- 129.54
- Std Package Width In
- 3.35
- Std Package Width MM
- 85.09
- Std. Pkg. Qty.
- 1000
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498380511
Specifications
- Barrel Length (In.)
- 0.27
- Barrel Length (mm)
- 6.7
- Barrel Type
- Standard
- Base Material
- Copper
- Color Code
- Metallic
- Finish/Coating
- Tin-Plated
- Fork Type
- Standard
- For Use With
- CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
- Inside Diameter (In.)
- 0.07
- Inside Diameter (mm)
- 1.8
- Insulation Material
- Non-Insulated
- Insulation Type
- Non-Insulated
- Maximum Copper Conductor Size (AWG)
- #14
- Maximum Copper Conductor Size (AWG SOL)
- #14
- Maximum Copper Conductor Size (AWG STR)
- #14
- Maximum Metric Conductor Size (mm²)
- 2.5
- Maximum Operating Temperature (°C)
- 150
- Maximum Operating Temperature (°F)
- 302
- Maximum Voltage (kV)
- 2
- Maximum Voltage (V)
- 2000
- Maximum Wire Size (AWG)
- #14
- Minimum Copper Conductor Size (AWG)
- #18
- Minimum Copper Conductor Size (AWG SOL)
- #18
- Minimum Copper Conductor Size (AWG STR)
- #18
- Minimum Metric Conductor Size (mm²)
- 1
- Minimum Wire Size (AWG)
- #18
- Outer Diameter (In.)
- 0.14
- Outer Diameter (mm)
- 3.6
- Overall Length (In.)
- 0.69
- Overall Length (mm)
- 17.5
- Overall Width (In.)
- 0.31
- Overall Width (mm)
- 7.9
- Packaging Type
- Box
- Product Segment
- IEI
- Product Type
- Fork Terminal
- Seam Type
- Brazed
- Standards Met
- UL Listed 587H E52164; CSA Certified LR31212
- Stud Hole Size (In.)
- #8
- Stud Hole Size (mm)
- 4
- Stud Size
- #8
- Sub Brand
- Pan-Term®
- Tongue Length (In.)
- 0.43
- Tongue Length (mm)
- 10.8
- Tongue Thickness (In.)
- 0.03
- Tongue Thickness (mm)
- 0.8
- Tongue Width (In.)
- 0.31
- Tongue Width (mm)
- 7.9
- Wire Strip Length (In.)
- 9/32
- Wire Strip Length (mm)
- 7.1
