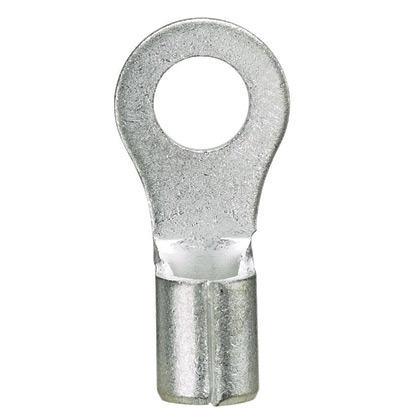

Panduit P10-56R-L
Estimated Delivery between and with free shipping.
Overnight shipping is also available.





Description
Panduit P10-56R-L is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- California Pro65 Cancer
- No
- Country of Origin 2Digit
- MX
- EAN
- 00074983802364
- GTIN Carton
- 50074983802369
- GTIN Package
- 00074983802364
- Hazardous Material Flag
- N
- Lead Content Indicator
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 250
- Min. Order UOM
- Piece
- REACH Status
- False
- Restricted Use of Hazardous Substances
- N
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.0398
- Standard Carton Weight Pounds
- 2.4000
- Standard Package Volume Ft3
- 0.0040
- Standard Package Weight Pounds
- 0.2400
- Std Carton Height In
- 3.75
- Std Carton Height MM
- 95.25
- Std Carton Length In
- 9.35
- Std Carton Length MM
- 237.49
- Std Carton Width In
- 4.6
- Std Carton Width MM
- 116.84
- Std Ctn Qty
- 500
- Std Package Height In
- 1.8
- Std Package Height MM
- 45.72
- Std Package Length In
- 3.6
- Std Package Length MM
- 91.44
- Std Package Width In
- 1.8
- Std Package Width MM
- 45.72
- Std. Pkg. Qty.
- 50
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498380236
Specifications
- Barrel Type
- Standard
- Base Material
- Copper
- Finish/Coating
- Tin-Plated
- For Use With
- CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)
- Inside Diameter (In.)
- 0.13
- Inside Diameter (mm)
- 3.3
- Insulation Material
- Non-Insulated
- Maximum Copper Conductor Size (AWG)
- #10
- Maximum Metric Conductor Size (mm²)
- 6
- Maximum Operating Temperature (°C)
- 150
- Maximum Operating Temperature (°F)
- 302
- Maximum Voltage (V)
- 2000
- Maximum Wire Size (AWG)
- #10
- Minimum Copper Conductor Size (AWG)
- #14
- Minimum Metric Conductor Size (mm²)
- 2.5
- Minimum Wire Size (AWG)
- #14
- Outer Diameter (In.)
- 0.22
- Outer Diameter (mm)
- 5.6
- Overall Length (In.)
- 0.95
- Overall Length (mm)
- 24.1
- Overall Width (In.)
- 0.52
- Overall Width (mm)
- 13.2
- Packaging Type
- Bottle
- Product Segment
- IEI
- Product Type
- Ring Terminal
- Seam Type
- Brazed
- Standards Met
- UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS20659-106)
- Stud Hole Size (In.)
- 5/16"
- Stud Hole Size (mm)
- 8
- Stud Size
- 5/16"
- Sub Brand
- Pan-Term®
- Tongue Thickness (In.)
- 0.04
- Tongue Thickness (mm)
- 1
- Tongue Width (In.)
- 0.52
- Tongue Width (mm)
- 13.2
- Wire Strip Length (In.)
- 9/32
- Wire Strip Length (mm)
- 7.1
Williams Automation sells Panduit parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
