Panduit NK688MAW-Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

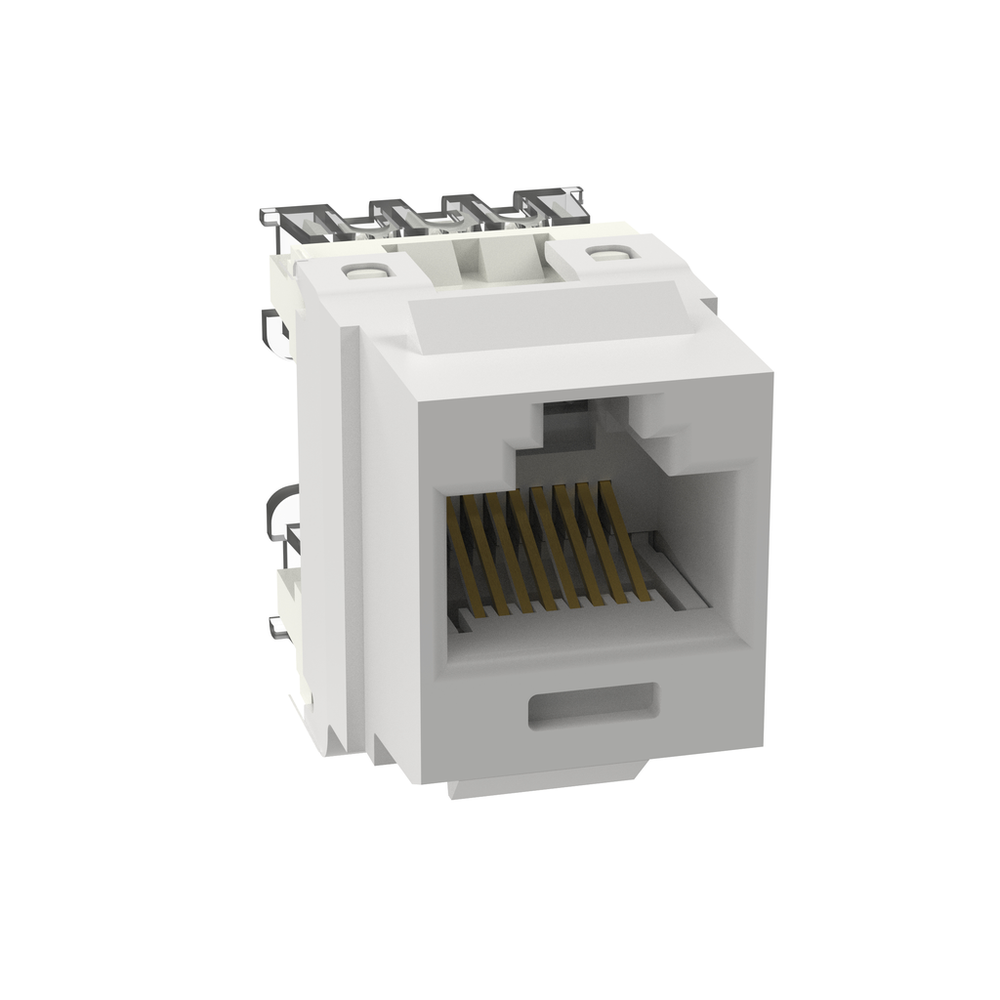

The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is arctic white and includes 25 per package.NetKey Cat 6 Punchdown Jack, Arctic White
Panduit NK688MAW-Q is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- US
- EAN
- 00074983997206
- GTIN Carton
- 50074983997201
- GTIN Package
- 00074983997206
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 25
- Min. Order UOM
- Piece
- Pallet Quantity
- 35,750
- Pallet Volume
- 51.781641
- Pallet Weight
- 643.5000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.3621
- Standard Carton Weight Pounds
- 4.5000
- Standard Package Volume Ft3
- 0.0362
- Standard Package Weight Pounds
- 0.4500
- Std Carton Height In
- 4.5
- Std Carton Height MM
- 114.3
- Std Carton Length In
- 13.5
- Std Carton Length MM
- 342.9
- Std Carton Width In
- 10.3
- Std Carton Width MM
- 261.62
- Std Ctn Qty
- 250
- Std Package Height In
- 3
- Std Package Height MM
- 76.2
- Std Package Length In
- 8
- Std Package Length MM
- 203.2
- Std Package Width In
- 5
- Std Package Width MM
- 127
- Std. Pkg. Qty.
- 25
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498399720
Specifications
- Body Material
- Polycarbonate
- Color
- Arctic White
- Connector Type
- Jack Module - Standard
- Contact Material
- Plated Phosphor Bronze
- Maximum Operating Temperature (°C)
- 75
- Maximum Operating Temperature (°F)
- 167
- Maximum Storage Temperature (°C)
- 75
- Maximum Storage Temperature (°F)
- 167
- Minimum Operating Temperature (°C)
- -10
- Minimum Operating Temperature (°F)
- 14
- Minimum Storage Temperature (°C)
- -40
- Minimum Storage Temperature (°F)
- -40
- Module Type
- Keystone
- Note
- Leadframe style jack; convenience pack of 25
- Overall Depth (In.)
- 1.16
- Overall Depth (mm)
- 29.5
- Overall Height (In.)
- 0.9
- Overall Height (mm)
- 22.9
- Overall Length (In.)
- 1.16
- Overall Length (mm)
- 29.5
- Overall Width (In.)
- 0.65
- Overall Width (mm)
- 16.5
- Performance Level
- Category 6
- Product Segment
- EDI-ENT
- Product Type
- Jack Module
- Shield Type
- Unshielded (UTP)
- Standards Met
- Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
- Sub Brand
- NetKey®
- Termination Style
- Punchdown
- Wiring Scheme
- T568A/T568B
