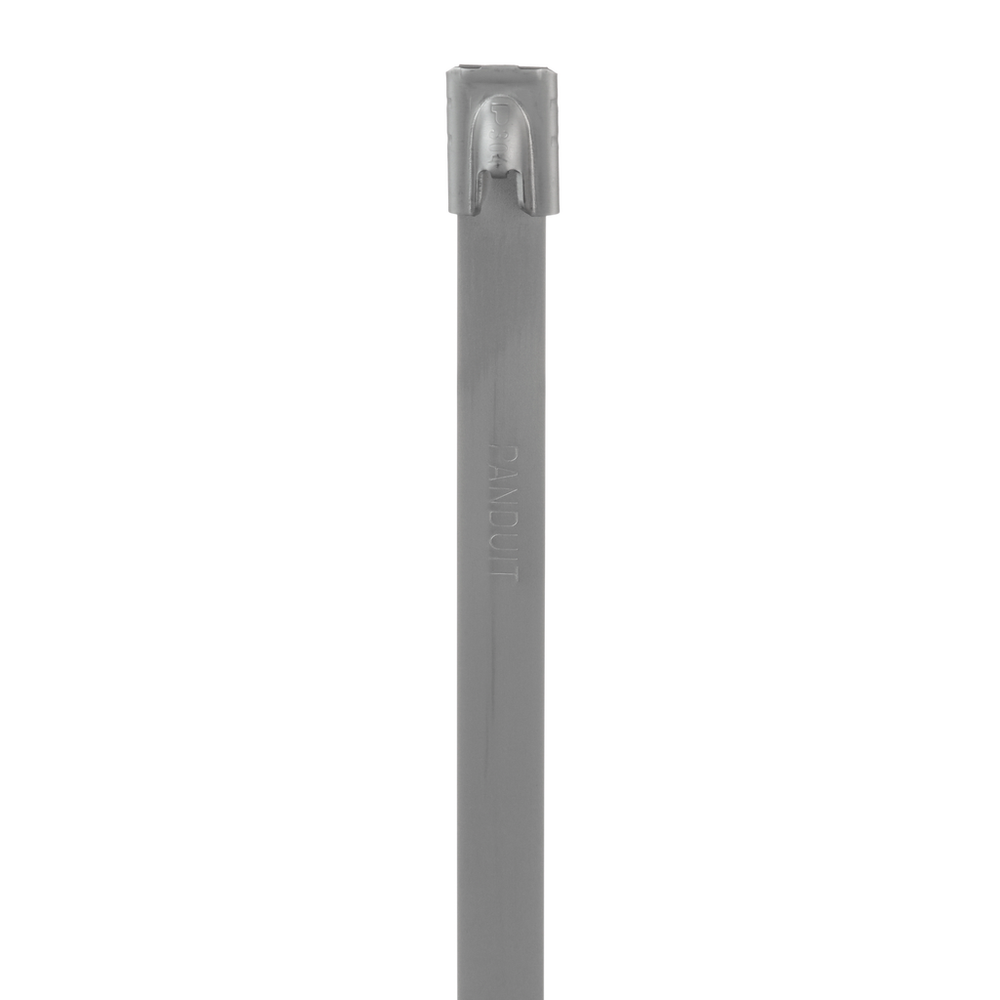

Panduit MLT6H-LP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Panduit MLT6H-LP is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- California Pro65 Cancer
- No
- Country of Origin 2Digit
- CN,US
- EAN
- 00074983543892
- GTIN Carton
- 50074983543897
- GTIN Package
- 00074983543892
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 50
- Min. Order UOM
- Piece
- Pallet Quantity
- 40,500
- Pallet Volume
- 26.148938
- Pallet Weight
- 988.2000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Carton Volume Ft3
- 0.1614
- Standard Carton Weight Pounds
- 6.1000
- Standard Package Volume Ft3
- 0.0323
- Standard Package Weight Pounds
- 1.2200
- Std Carton Height In
- 1.85
- Std Carton Height MM
- 46.99
- Std Carton Length In
- 24.9
- Std Carton Length MM
- 632.46
- Std Carton Width In
- 5.7
- Std Carton Width MM
- 144.78
- Std Ctn Qty
- 250
- Std Package Height In
- 1.55
- Std Package Height MM
- 39.37
- Std Package Length In
- 22.2
- Std Package Length MM
- 563.88
- Std Package Width In
- 4.05
- Std Package Width MM
- 102.87
- Std. Pkg. Qty.
- 50
- Std. Pkg. UOM
- Piece
- UOM EA PK
- PK
- UPC
- 07498354389
Specifications
- Application
- General
- Body Thickness (In.)
- 0.01
- Body Thickness (mm)
- 0.3
- Body Width (In.)
- 0.31
- Body Width (mm)
- 7.9
- Color
- Metallic
- Environment
- Indoor/Outdoor
- For Use With
- GS4MT-E, HTMT, PPTMT, ST2MT
- Material
- Stainless Steel Type 304
- Maximum Bundle Diameter (In.)
- 6
- Maximum Bundle Diameter (mm)
- 152
- Maximum Operating Temperature (°C)
- 538
- Maximum Operating Temperature (°F)
- 1000
- Military Cross Reference Number
- M23190/3-7
- Minimum Bundle Diameter (In.)
- 0.5
- Minimum Bundle Diameter (mm)
- 12.7
- Minimum Installation Temperature (°C)
- -60
- Minimum Installation Temperature (°F)
- -76
- Minimum Loop Tensile Strength (lb)
- 450
- Minimum Loop Tensile Strength (N)
- 2000
- Minimum Operating Temperature (°C)
- -60
- Minimum Operating Temperature (°F)
- -76
- Overall Length (In.)
- 20.5
- Overall Length (mm)
- 521
- Product Segment
- IEI
- Product Type
- Stainless Steel Cable Ties
- Resistance Properties
- UV Resistant
- Standards Met
- UL E56854,CE,ABS,GL,SAE,BV,LR,DNV,USCG
- Sub Brand
- Pan-Steel®
Williams Automation sells Panduit parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
